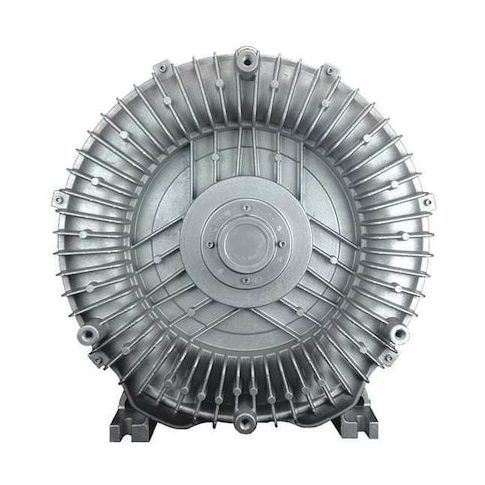

Regenerative Blower, 15 HP, 791 cfm, 4 in Inlet/Outlet, TEFC Hazardous Environment, 3 Phase MPN:AB-1100

• Atlantic Blowers AB-1100 regenerative blower, 15 HP, rated for a maximum flow rate of 791 cfm. Three-phase unit rated for operation at 220-275 / 380-480 V and full load amps 37.0/21.4Y. Cast aluminum housing with 4" inlet and 4" outlet, with maximum pressure: 68" WC

• maximum vacuum: 72" WC. Insulation class: F (NEMA)
• includes thermal protection. Rated for operation in ambient temperatures up to 104°F and overall depth 21.93". Motor enclosure: totally enclosed fan cooled (TEFC)
• verify hazardous-location certifications for the specific model.

  Key Features:

  • - Item/model: Regenerative Blower, AB-1100, 15 HP
  • - Max. Flow Rate: 791 cfm
  • - Max. Pressure: 68" WC
  • - Max. Vacuum: 72" WC
  • - Voltage: 220-275/380-480
  • - Phase: Three
  • - Full Load Amps: 37.0/21.4Y
  • - Housing Material: Cast Aluminum
  • - Inlet Size: 4"
  • - Outlet Size: 4"
  • - Motor Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • verify hazardous-location certifications for the specific model
  • - Standards: Class F NEMA Insulation
  • - Thermal Protection: Yes
  • - Max. Ambient Temp.: 104°F
  • - Overall Depth: 21.93"
