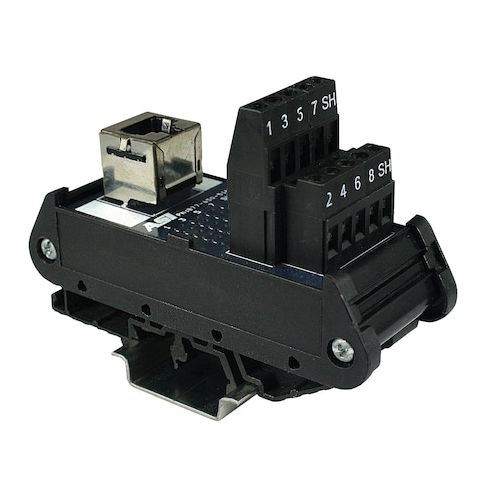

RJ45 Breakout Board, RJ45 Ethernet Connector Breakout Board, DIN Rail Mount, RJ45 To Screw Terminals MPN:16001
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G109076316
RJ45 Breakout Board, RJ45 Ethernet Connector Breakout Board, DIN Rail Mount, RJ45 To Screw Terminals
Elevate your industrial Ethernet connectivity with the RJ45 Breakout Board, a professional-grade solution for transitioning from Cat5 cable to wire. This DIN rail mountable module features a solder bus board for customizing each wire, a double-level terminal block with 8 positions and 2 shielded terminals, and convenient component holes for adding resistors, MOVs, or other components. Ideal for industrial Ethernet applications, this breakout board ensures accurate wiring and easy customization. Perfect for use in control panels, machine automation, and data transmission systems, this module offers a reliable and efficient way to connect and manage your industrial Ethernet network.
Top product features:
- Mounts onto DIN rail for easy installation and organization
- Has one RJ45 connector for a Cat5e industrial ethernet cable
- Provides a solder bus board for customizing each wire
Top product applications:
- RJ45 Breakout Board is suitable for use in industrial Ethernet applications where a Cat5 cable needs to be transitioned to wire.
- This RJ45 breakout board can be used in data centers for easy and accurate wiring of Cat5e cables.
- This product is ideal for use in automation and control systems where a RJ45 connector needs to be transitioned to a terminal block.
16001 IMRJ0845 is an RJ45 terminal block DIN rail module used as a RJ45 Ethernet Connector breakout board to transition from a Cat5 cable to wire. This RJ45 to terminal block adapter is a more professional type of Cat5e terminal block whereas it mounts onto DIN rail, has one RJ45 connector for a Cat5e industrial ethernet cable, a solder bus board for customizing each wire and a double level terminal block with 8 positions and 2 shielded terminals. This RJ45 breakout board is clearly labeled to ensure accurate wiring and there are convenient component holes in each circuit between the RJ45 connector and the terminal block. You can easily add components such as resistors, MOVs or other if your application requires these components. In addition to a RJ45 connector to terminal block ASI also offer DIN rail mounted Cat5e patch panel modules with 3 RJ45 connectors in series, 2 rows of 3 RJ45 connectors in series and 3 rows of RJ45 connectors in series along with a splitter module. The splitter RJ45 ethernet Cat5e module also DIN rail mounts and provides a transition from one connector to two. ASI offers a variety of interface modules to transition from D-sub to wire, ribbon cable to wire, rj11 to wire, PLC to wire just to name a few.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.40
- Package Height: 3.60
- Package Weight: 0.50
