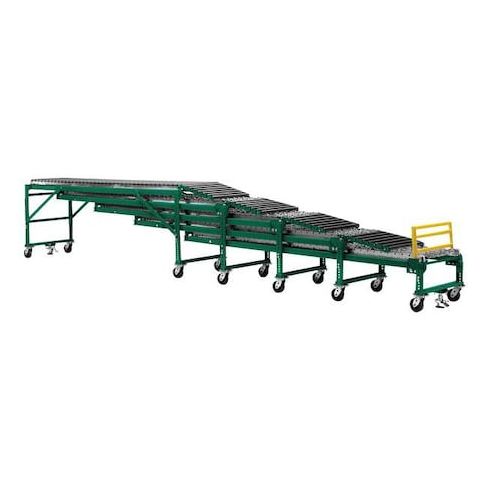

Telescoping Steel-Frame Roller Conveyor, Light-Duty, 30 in W, 16 ft 4 in to 60 ft, Steel Rollers MPN:T6A83214TLEFG
Free Shipping
In Stock
The Ashland Conveyor Telescope Conveyor is a versatile and efficient solution for various material handling applications. Its 60 ft. length and 39-1/4 in. width make it ideal for use in warehouses, manufacturing facilities, and distribution centers. The telescoping design allows for easy installation and reconfiguration, while the steel frame and 1 3/8 in. roller diameter ensure durability and smooth material flow. This light-duty conveyor is perfect for handling small to medium-sized packages, boxes, and cartons, and can be used in a variety of industries, including e-commerce, pharmaceuticals, and food processing. Its compact design also makes it suitable for use in tight spaces.
Top product features:
- Telescoping design allows for compact storage and easy setup
- Roller diameter of 1 3/8 in provides smooth and quiet operation
- 1 1/2 in roller spacing enables efficient product handling and flow
Top product applications:
- Assembly lines
- Warehouse storage
- Freight handling
Telescoping Steel-Frame Roller Conveyor (ASHLAND CONVEYOR - T6A83214TLEFG) is a telescoping, bolted steel-frame roller conveyor with a maximum length of 60 ft and a retracted length of 16 ft 4 in. The frame is powder coated, straight in shape, and uses bolt-on connections
- the frame capacity is 140 lb/ft, measured on 10-ft supports.
Key Features:
- Frame type: Telescoping steel frame
- design: bolted
- conveyor connection type: bolt-on
- Lengths: Retracted length 16 ft 4 in
- maximum/overall length 60 ft
- Widths: Overall width 39 1/4 in
- between-frame width 30 in
- Height adjustment: High side 47 to 67 in
- Low side 20 1/2 to 24 1/2 in
- Load capacity: 140 lb/ft (10-ft supports)
- Frame capacity: 140 lb/ft, measured on 10-ft supports
- Duty rating: Light-Duty (manufacturer designation)
- Rollers: 80 rollers per conveyor section
- roller dia. 1 3/8 in
- roller gauge/material: 18 ga steel
- roller spacing/center-to-center: 1-1/2 in
- roller mounting position: manufacturer-designated "set high"
- center-to-center spacing: 1-1/2 in
- Bearings: Ball bearings (roller bearing type: ball bearing)
- Legs: 14 per unit
- casters: 8 in diameter
- Finish: Powder coated (frame finish/coating: powder coated)
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 180.00
- Package Width: 45.00
- Package Height: 60.00
- Package Weight: 2795.00
