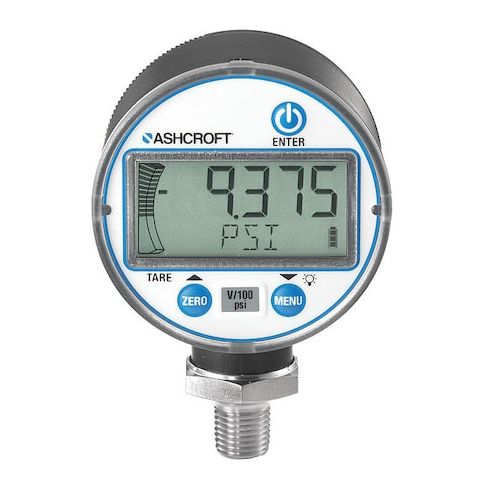

Digital Test Pressure Gauge, 0 to 500 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location MPN:DG2531L0NAMO2L500#-XCYC4LM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7640899
Digital Test Pressure Gauge, 0 to 500 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location
The Ashcroft Digital Test Pressure Gauge is a versatile and accurate instrument for measuring pressure in a wide range of applications. With a 2 1/2 in dial and 0 to 500 psi range, it's ideal for testing and monitoring pressure in industrial, laboratory, and research settings. Its high accuracy of +/-0.25% ensures precise readings, while its IP67 rating and 17-4 stainless steel sensor make it suitable for harsh environments. This gauge is perfect for use in chemical plants, oil refineries, and laboratories, offering reliable and repeatable measurements for process optimization and safety.
Top product features:
- 0 to 500 psi measurement range
- Accuracy of +/-0.25 Percent
- Digital display with units including bar, cm Hg, ft wc, in Hg, kg/sq cm, kPa, mm Hg, Mpa, psi
Top product applications:
- High-pressure testing of industrial equipment
- Monitoring pressure in hydraulic systems
- Testing and calibration of pressure vessels
Digital Test Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material ABS Polycarbonate, Nominal Dial Size 2 1/2 in, Lens Material Polycarbonate, IP/NEMA Rating IP67, Hazardous Location Rating Not Rated, Compatible Process Media Wide Variety of Pressure Media, Sensor Material 17-4 Stainless Steel, Socket Material 316L Stainless Steel, Sensor Type CVD Strain Gauge, Process Connection Type NPT, Display Units bar, cm Hg, ft wc, in Hg, kg/sq cm, kPa, mm Hg, Mpa, psi
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 7.10
- Package Height: 2.70
- Package Weight: 0.75
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 3, 2026 9:09pm UTC
Category: Pressure and Vacuum Measuring
