Pressure Transmitter, 50 psi MPN:E2GB7NM0242CCX03F50#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G507481576

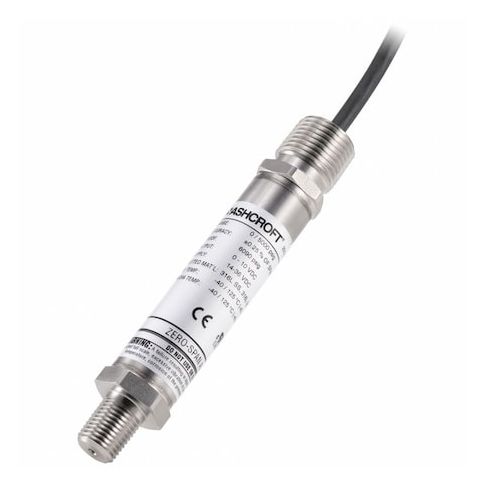

Pressure Transmitter, 50 psi
This pressure transmitter from Ashcroft is designed for a wide range of applications, including industrial process control, laboratory settings, and hazardous locations. Its 50 psi maximum pressure and 4-20mA DC output make it suitable for monitoring pressure in various systems. The transmitter's high accuracy of +/-1.00% of span ensures reliable measurements. Its compact design and stainless steel housing make it resistant to corrosion and harsh environments, while its NEMA 4X rating ensures protection against water and dust. This transmitter is ideal for use in oil and gas, chemical processing, and power generation industries.
Top product features:
- Pressure transmitter measures pressure up to 50 psi.
- Has a 4 to 20mA DC output.
- Has a maximum operating temperature of 257 degrees F.
Top product applications:
- Process control in oil and gas industry
- Monitoring water pressure in municipal water treatment plants
- Measuring pressure in chemical processing plants
Pressure Transmitter, Maximum Pressure 50 psi, Electrical Connections 1/2 in NPT Conduit with Cable, Output 4 to 20mA DC, Accuracy +/-1.00 Percent of Span, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP66, Series E2G, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Stainless Steel, Safety Rating Class A, Group 1
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.22
- Restricted States: CA
Product info last updated on March 9, 2026 1:22pm UTC
Category: Pressure and Vacuum Measuring
