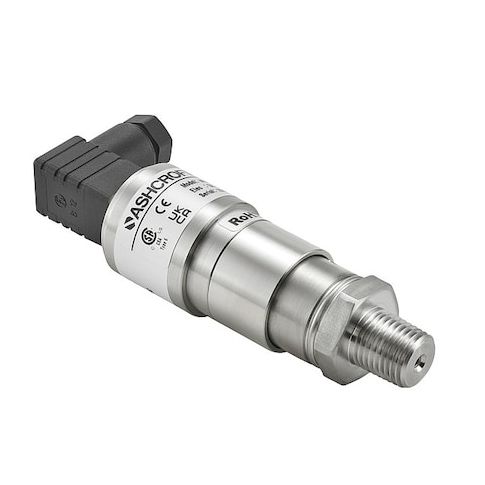

Pressure Switch, Standard, SPDT, 1/4" MNPT, -15 to 15 psi Range, 316 Stainless Steel MPN:APAN41H00MHS02-15/15#-NSR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4724544
Pressure Switch, Standard, SPDT, 1/4" MNPT, -15 to 15 psi Range, 316 Stainless Steel
This high-performance pressure switch from Ashcroft is designed for demanding applications, with a durable 316 stainless steel housing and wetted materials that withstand exposure to air and liquids. Its compact 1/4in MNPT process connection and micro DIN electrical connector make it easy to integrate into a wide range of systems. With a broad operating temperature range of -40 to 210°F and a robust design that can withstand up to 9,500 psi, this switch is ideal for use in industrial processes, HVAC systems, and other applications where precise pressure monitoring is critical.
Top product features:
- Pressure switch measures pressure within a range of -15 to 15 psi.
- Switch has a 1/4in MNPT process connection.
- Switch has a 316 Stainless Steel housing.
Top product applications:
- Compressor Monitoring System
- Oil Pressure Switch for Industrial Equipment
- Steam Line Pressure Control System
Pressure Switch, Range -15 to 15 psi, Process Connection 1/4 in MNPT, Housing Material 316L Stainless Steel, Wetted Materials 316 Stainless Steel, Compatible With Air and Liquids, Electrical Connection Micro DIN Connector, Contact Form 1NO/1NC, Circuit Type Not Applicable, AC Contact Rating 5 A @ 125/250 V, DC Contact Rating 3 A @ 28 V (Inductive), 5 A @ 28 V (Resistive), NEMA Rating 6, IP Rating IP67, Burst Pressure 9,500 psi, Operating Temp. Range -40 Degrees to 210 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 2.10
- Package Height: 1.80
- Package Weight: 0.50
Product info last updated on March 1, 2026 9:57am UTC
Category: Industrial Electrical Controls and Automation
