Pressure Switch, Standard, SPDT, 7/16-20" SAE, 100 to 1000 psi Range, 316 Stainless Steel MPN:APAN41H012LB051000#-NSR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4717702

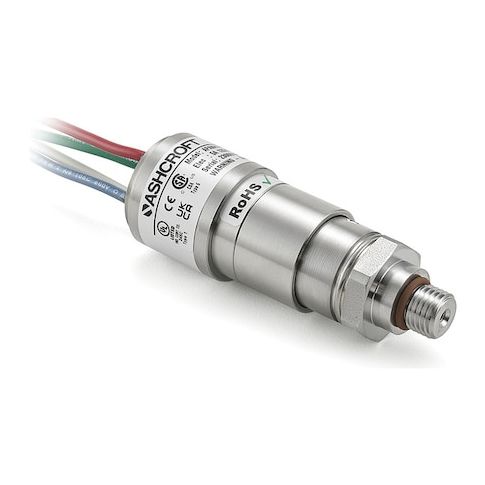

Pressure Switch, Standard, SPDT, 7/16-20" SAE, 100 to 1000 psi Range, 316 Stainless Steel
The Ashcroft Pressure Switch is a versatile and reliable solution for a wide range of applications, from industrial processes to laboratory settings. With a durable 316L stainless steel housing and wetted materials, it can withstand exposure to air and liquids, making it ideal for use in harsh environments. The switch offers a 100 to 1000 psi range and is compatible with both AC and DC power sources, with ratings of up to 5 A at 125/250 V and 28 V. Suitable for use in chemical plants, water treatment facilities, and other industrial settings, this pressure switch provides accurate and reliable performance.
Top product features:
- Pressure switch measures pressure range of 100 to 1000 psi.
- Contact form is 1NO/1NC.
- Housing is made of 316L stainless steel.
Top product applications:
- Industrial Process Control Systems
- Hydraulic Systems and Pumps
- Air Compressor Systems
Pressure Switch, Range 100 to 1000 psi, Process Connection 7/16 in SAE, Housing Material 316L Stainless Steel, Wetted Materials 316 Stainless Steel, Buna-N, Compatible With Air and Liquids, Electrical Connection 3-18 AWG PVC Insulated 12 In. Wire Leads, Contact Form 1NO/1NC, Circuit Type Not Applicable, AC Contact Rating 5 A @ 125/250 V, DC Contact Rating 3 A @ 28 V (Inductive), 5 A @ 28 V (Resistive), NEMA Rating 6, IP Rating IP67, Burst Pressure 30,000 psi
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 2.10
- Package Height: 1.80
- Package Weight: 0.50
Product info last updated on February 2, 2026 6:19pm UTC
Category: Industrial Electrical Controls and Automation
