Pressure Transducer, -0.1to 0 to 0.1 InWC MPN:CX8MB242P1IWL
Pressure Transducer, -0.1to 0 to 0.1 InWC

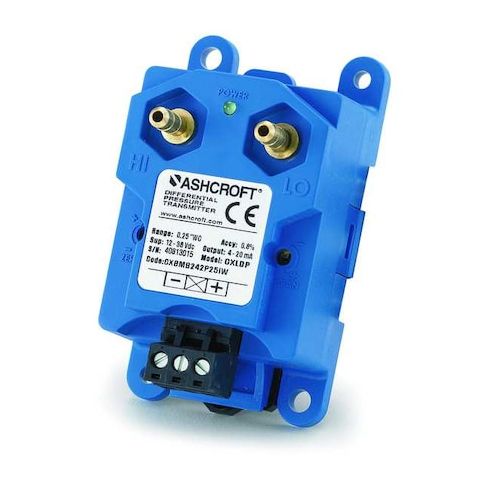

The Ashcroft CXLdp Differential Transmitter is a reliable and accurate solution for measuring pressure in various industrial applications. With a wide measurement range of -0.1 to 0.1 in WC, this transmitter is ideal for use in processes where precise pressure monitoring is crucial. The 4-20mA DC output provides easy integration with control systems, while the compact design and NEMA 1 rating make it suitable for a range of environments. Suitable for applications such as water treatment, chemical processing, and HVAC systems, this transmitter offers high accuracy and reliability. Its compact size and easy installation make it a valuable addition to any industrial setup.
Top product features:
- Pressure range from -0.1 to 0 to 0.1 inWC
- Output signal in 4 to 20mA DC
- Overpressure protection up to 15 psid
Top product applications:
- Pressure Transducer suitable for use in HVAC systems to measure pressure drops in ducts and vents.
- Differential Transmitter can be used in chemical processing plants to measure the pressure difference between two points in a process.
- Pressure Transducer can be used in medical equipment, such as ventilators, to measure the pressure of gases and liquids.
Differential Transmitter, Output 4 to 20mA DC, Minimum Pressure -0.1 in wc, Maximum Pressure 0.1 in wc, Overpressure 15 psid, Accuracy +/-0.80 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type Hose Barb, Power Required 12 to 36V DC, NEMA Rating NEMA 1, Safety Rating UL94-5VA, Series CXLdp, Housing Material Plastic, Electrical Connections Screw Terminals, Fitting Material Brass, Burst Pressure 25 psid
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 3.50
- Package Height: 2.50
- Package Weight: 0.25
Product info last updated on March 14, 2026 4:13am UTC
Category: Pressure and Vacuum Measuring
