Sanitary Transducer, Vac to30psi, 1 to5VDC MPN:KS7S2015HM30#&VAC
Sanitary Transducer, Vac to30psi, 1 to5VDC

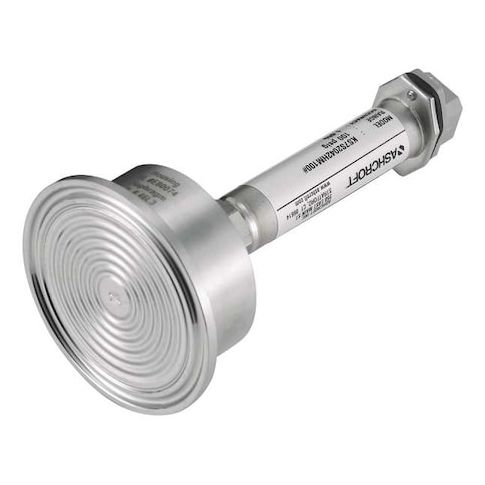

This Sanitary Transducer from Ashcroft is a reliable and accurate pressure transmitter designed for use in sanitary applications. It measures pressure from 30 in Hg to 30 psi with +/-1% accuracy, making it suitable for a wide range of industries such as food and beverage, pharmaceutical, and biotechnology. The transducer's 1-5VDC output is compatible with various control systems, and its NEMA 4X rating ensures durability in harsh environments. Its compact design and Triclamp connection make it easy to integrate into existing systems, providing precise pressure measurement and control for optimal process performance.
Top product features:
- Transmits pressure readings in a sanitary environment
- Measures pressure from 30 in Hg to 30 psi
- Provides an output of 1 to 5VDC
Top product applications:
- Pharmaceutical Process Control
- Biotechnology Process Monitoring
- Food and Beverage Processing Pressure Measurement
Sanitary Pressure Transmitter, Output 1 to 5VDC, Maximum Pressure 30 psi, Minimum Pressure 30 in Hg, Accuracy +/-1 Percent of Full Scale, Number of Wires 3, Process Connection Size 2 in, Process Connection Type Triclamp, Power Required 10 to 36V DC, NEMA Rating NEMA 4X, Series KS, Electrical Connections 4-Pin Mini-DIN Hirschmann G Series Connector, Housing Material Stainless Steel, Fitting Material Stainless Steel, Safety Rating -, Burst Pressure 8x Range, Cable Length Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.70
- Package Height: 3.90
- Package Weight: 1.25
Product info last updated on April 1, 2026 7:52am UTC
Category: Pressure and Vacuum Measuring
