Transducer, 0 to 30 psi, Output 1 to 5VDC MPN:G17MEK15F230#
Transducer, 0 to 30 psi, Output 1 to 5VDC

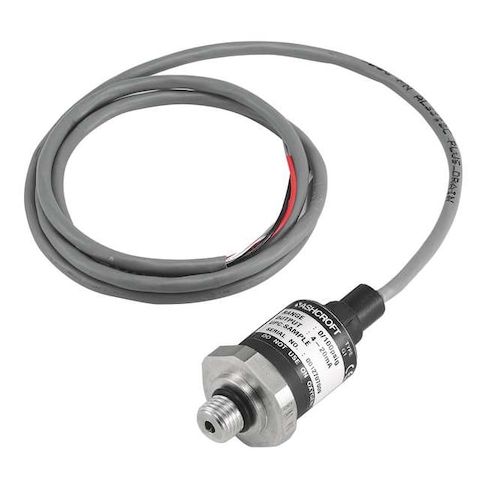

This high-accuracy pressure transducer from Ashcroft is designed for a wide range of applications, including industrial, commercial, and scientific use. It provides a reliable output of 1 to 5V DC, making it suitable for use in various control systems and data acquisition systems. The transducer's 0 to 30 psi measurement range and accuracy of +/-0.50 Percent Full Scale make it ideal for applications where precise pressure measurement is crucial. Its compact size and rugged NEMA 4X and IP67 ratings also make it suitable for use in harsh environments, including those with high temperatures and exposure to moisture.
Top product features:
- 0 to 30 psi measurement range
- 1 to 5V DC output signal
- NEMA 4X and IP67 ratings for protection against environmental factors
Top product applications:
- Industrial Process Control: The pressure transducer can be used to monitor and regulate pressure levels in industrial processes such as oil and gas refining, chemical processing, and power generation.
- Medical Equipment: The transducer can be used to measure and display pressure levels in medical equipment such as ventilators, dialysis machines, and anesthesia machines.
- Automotive Testing: The pressure transducer can be used to measure and display pressure levels in automotive testing equipment such as brake testing machines and tire pressure testing machines.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 30 psi, Electrical Connections Cable & Wire Leads, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 7/16 in, Process Connection Type SAE, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Nylon
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 3.30
- Package Height: 1.10
- Package Weight: 0.25
Product info last updated on March 15, 2026 11:34pm UTC
Category: Pressure and Vacuum Measuring
