Transducer, 0 to7500 psi, Output 1 to 5VDC MPN:G17M0115F27500#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0132404

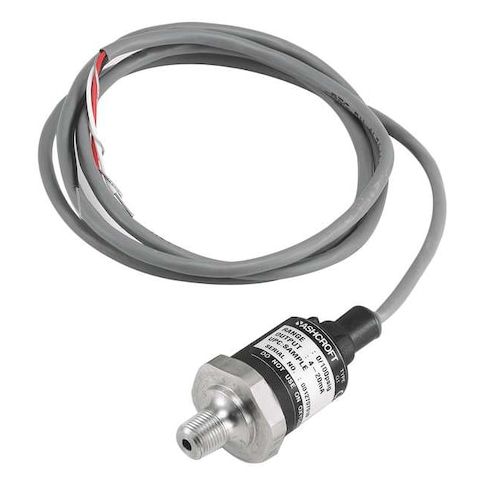

Transducer, 0 to7500 psi, Output 1 to 5VDC
This high-pressure transducer from Ashcroft is designed to withstand extreme conditions, measuring pressures from 0 to 7500 psi with an accuracy of +/-0.50% full scale. Its 1-5VDC output makes it suitable for a wide range of applications, including industrial processes, oil and gas exploration, and research facilities. The transducer's rugged NEMA 4X rating and IP67 protection ensure reliable performance in harsh environments. With a temperature range of -40 to 257°F, it can be used in various industries, including aerospace, automotive, and chemical processing. Its compact size and nylon housing make it easy to integrate into existing systems.
Top product features:
- 0 to 7500 psi measurement range
- 1 to 5V DC output signal
- Accuracy of +/-0.50 Percent Full Scale
Top product applications:
- Pressure measurement in industrial processes such as oil and gas exploration
- Monitoring pressure in hydraulic systems for heavy machinery
- Measuring pressure in laboratory settings for scientific research
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 7,500 psi, Electrical Connections Cable & Wire Leads, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Nylon
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 3.30
- Package Height: 1.20
- Package Weight: 0.25
Product info last updated on February 10, 2026 11:27am UTC
Category: Pressure and Vacuum Measuring
