Transducer, 0 to1000 psi, Output 1 to 5VDC MPN:G17M0115F21000#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0132377

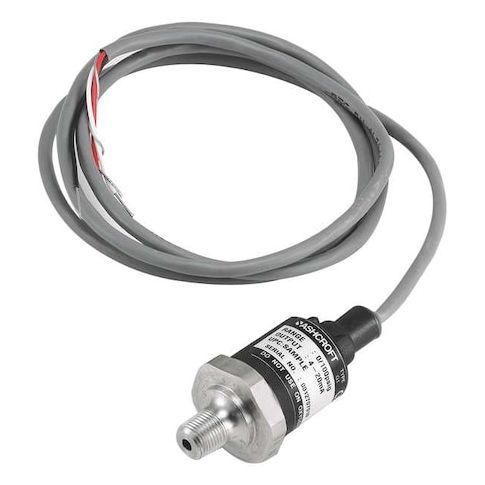

Transducer, 0 to1000 psi, Output 1 to 5VDC
This high-accuracy pressure transducer from Ashcroft is designed for a wide range of industrial applications, including process control, monitoring, and measurement. With a 0 to 1000 psi measurement range and a 1 to 5VDC output, it provides precise pressure readings in a compact and durable package. Suitable for use in harsh environments, it features a NEMA 4X rating and IP67 protection against water and dust. Ideal for applications such as oil and gas, chemical processing, and power generation, this transducer offers reliable performance and long-term stability, making it a valuable addition to any industrial measurement system.
Top product features:
- Measures pressure from 0 to 1000 psi
- Outputs a voltage signal between 1 to 5V DC
- Operates over a temperature range of -40 to 257 degrees F
Top product applications:
- Pressure measurement in industrial processes such as oil and gas exploration
- Measuring pressure in hydraulic systems used in heavy machinery
- Monitoring pressure in chemical processing plants
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 1,000 psi, Electrical Connections Cable & Wire Leads, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Nylon
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 3.40
- Package Height: 1.40
- Package Weight: 0.27
Product info last updated on March 1, 2026 4:44pm UTC
Category: Pressure and Vacuum Measuring
