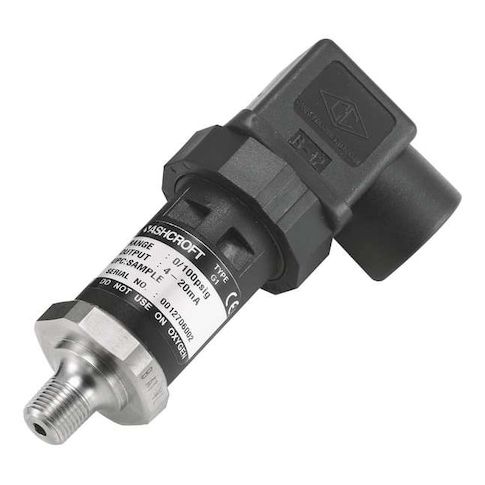

Transducer, Vac to 30 psi, Output 1 to5VDC MPN:G17M0115CDVAC/30#
Transducer, Vac to 30 psi, Output 1 to5VDC
The Ashcroft G2 Series Pressure Transducer is a versatile and reliable solution for measuring pressure in various industrial applications. With a minimum pressure range of -15 psi and a maximum pressure range of 30 psi, it can accurately monitor pressure in a wide range of processes. The transducer's 1-5VDC output makes it easy to integrate with various control systems. Its compact design and NEMA 4X rating ensure durability in harsh environments. Suitable for use in oil and gas, chemical, and food processing industries, this transducer provides accurate and reliable pressure measurement for optimal process control and safety.
Top product features:
- Transducer converts vacuum to 30 psi pressure readings
- Output range of 1 to 5V DC provides a proportional signal for downstream processing
- Accuracy of +/-0.50 Percent Full Scale ensures precise pressure measurements
Top product applications:
- Pressure measurement in industrial processes such as manufacturing, oil and gas production, and chemical plant operations
- Monitoring pressure in compressed air systems used in pneumatic tools and equipment
- Measuring pressure in hydraulic systems used in heavy machinery and equipment
Pressure Transmitter, Minimum Pressure -15 psi, Maximum Pressure 30 psi, Electrical Connections DIN 43650 Form A Connector, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP65, Series G2, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 257 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 1.40
- Package Height: 6.10
- Package Weight: 0.27
Product info last updated on March 20, 2026 5:14am UTC
Category: Pressure and Vacuum Measuring
