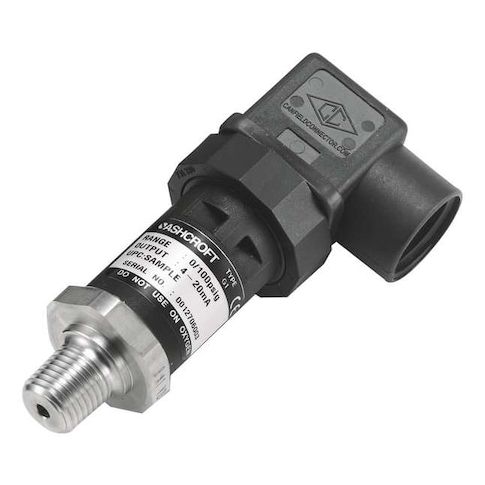

Transducer, 0 to1000 psi, Output 1 to 5VDC MPN:G17M0215CD1000#
Transducer, 0 to1000 psi, Output 1 to 5VDC
For demanding industrial applications, the Ashcroft Series G2 Pressure Transmitter offers precise measurement and reliable performance. Capable of withstanding pressures up to 1000 psi, this transducer delivers accurate output within a +/-0.50 percent full scale range. Its compact design features a DIN 43650 Form A connector and 1/4 in NPT process connection, making it easy to integrate into a variety of systems. Ideal for use in high-temperature environments, the transmitter's NEMA 4X and IP67 ratings ensure durability and protection from the elements. Suitable for applications in oil and gas, chemical processing, and more, this transducer provides a reliable solution for pressure measurement needs.
Top product features:
- Measures pressure from 0 to 1000 psi
- Provides a 1 to 5V DC output
- Withstands operating temperatures up to 257 degrees F
Top product applications:
- Industrial Process Control: The Ashcroft transducer is used to measure pressure in industrial processes, such as oil and gas, chemical, and power generation applications.
- Medical Equipment: The pressure transmitter can be used in medical equipment, such as ventilators and dialysis machines, to measure pressure and provide accurate readings.
- Automotive Test Equipment: The transducer can be used in automotive test equipment, such as engine test stands and brake testers, to measure pressure and provide accurate readings.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 1,000 psi, Electrical Connections DIN 43650 Form A Connector, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 257 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 1.50
- Package Height: 6.00
- Package Weight: 0.28
Product info last updated on February 1, 2026 3:28am UTC
Category: Pressure and Vacuum Measuring
