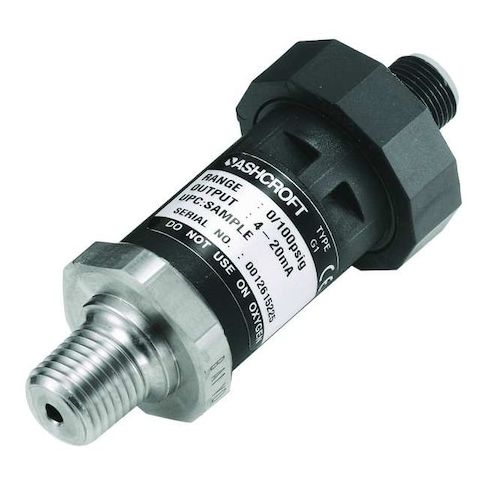

Transducer, 0 to 100 psi, Output 1 to 5VDC MPN:G17M0215EW100#
Transducer, 0 to 100 psi, Output 1 to 5VDC
This high-accuracy pressure transducer from Ashcroft is designed for a wide range of industrial applications, including process control, monitoring, and measurement. With a 0 to 100 psi range and 1 to 5VDC output, it provides precise and reliable data. The compact, NEMA 4X-rated design makes it suitable for harsh environments, while the IP67 rating ensures protection against dust and water. Suitable for use in various industries, including oil and gas, chemical processing, and manufacturing, this transducer offers accurate pressure measurement and monitoring capabilities. Its versatility and reliability make it an ideal choice for demanding applications.
Top product features:
- 0 to 100 psi measurement range
- Output of 1 to 5VDC
- Accuracy of +/-0.50 Percent Full Scale
Top product applications:
- Oil and Gas Industry: The transducer can be used to measure pressure in oil and gas pipelines, wells, and storage tanks.
- Automotive Industry: The pressure transmitter can be used in automotive applications such as fuel pressure sensors, brake pressure sensors, and engine oil pressure sensors.
- Medical Equipment: The transducer can be used in medical equipment such as infusion pumps, ventilators, and dialysis machines to measure pressure and ensure safe and accurate operation.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 100 psi, Electrical Connections 4-Pin M12 Connector, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.90
- Package Height: 4.10
- Package Weight: 0.23
Product info last updated on March 29, 2026 3:46am UTC
Category: Pressure and Vacuum Measuring
