Transducer, 0 to3000 psi, Output 1 to 5VDC MPN:G17M0115DO3000#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0123164

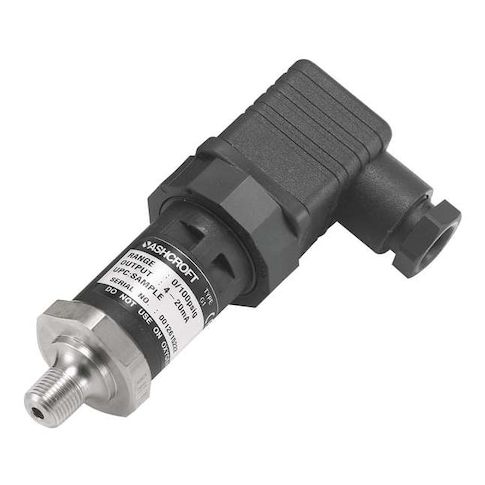

Transducer, 0 to3000 psi, Output 1 to 5VDC
This high-accuracy pressure transducer from Ashcroft measures pressures from 0 to 3000 psi, providing a precise output of 1 to 5V DC. Designed for use in a variety of applications, including industrial, aerospace, and medical industries, this transducer offers a durable NEMA 4X rating and operates within a wide temperature range of -40 to 257 degrees F. Its compact size and DIN 43650 Form A connector make it ideal for use in tight spaces, while its high accuracy and reliability make it a valuable asset for any application requiring precise pressure measurement.
Top product features:
- Measures pressure up to 3000 psi
- Provides a 1 to 5V DC output signal
- Operates over a temperature range of -40 to 257 Degrees F
Top product applications:
- High-pressure industrial process control systems for monitoring and regulating pressure levels in applications such as chemical plants and oil refineries
- Medical equipment calibration and testing for ensuring accurate pressure readings in devices such as ventilators and infusion pumps
- Aerospace and defense industry applications where high-precision pressure measurement is critical for systems such as aircraft hydraulic systems and missile guidance systems
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 3,000 psi, Electrical Connections DIN 43650 Form A Connector, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP65, Series G2, Wiring Entry Cable Gland, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 1.50
- Package Height: 6.10
- Package Weight: 0.30
Product info last updated on March 1, 2026 1:45am UTC
Category: Pressure and Vacuum Measuring
