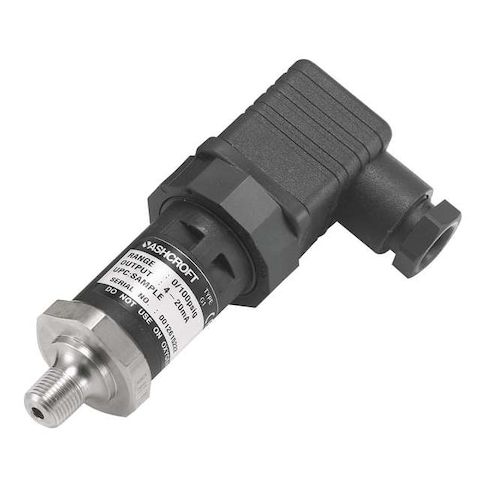

Transducer, 0 to 30 psi, Output 1 to 5VDC MPN:G17M0115DO30#
Transducer, 0 to 30 psi, Output 1 to 5VDC
This pressure transducer from Ashcroft is a reliable and accurate solution for a wide range of applications, including industrial, commercial, and laboratory settings. With a measurement range of 0 to 30 psi and an output of 1 to 5VDC, it can be easily integrated into various systems and instruments. Its high accuracy of +/-0.50 Percent Full Scale ensures precise measurements, while its NEMA 4X rating and IP65 protection make it suitable for harsh environments. Suitable for use in applications such as process control, monitoring, and testing, this transducer is a valuable tool for ensuring accurate and reliable data.
Top product features:
- 0 to 30 psi measurement range
- 1 to 5V DC output signal
- Accuracy of +/-0.50 Percent Full Scale
Top product applications:
- Oil and Gas Industry: The transducer can be used to measure pressure in oil and gas pipelines, allowing for accurate monitoring and control of fluid flow and pressure.
- Hydraulic Systems: The transducer can be used in hydraulic systems to measure pressure in hydraulic cylinders, motors, and pumps, enabling precise control and monitoring of fluid pressure.
- Chemical Processing: The transducer can be used to measure pressure in chemical processing equipment, such as reactors, tanks, and pipes, allowing for accurate monitoring and control of pressure and flow rates.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 30 psi, Electrical Connections DIN 43650 Form A Connector, Output 1 to 5V DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP65, Series G2, Wiring Entry Cable Gland, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 1.40
- Package Height: 6.10
- Package Weight: 0.30
Product info last updated on February 8, 2026 4:42pm UTC
Category: Pressure and Vacuum Measuring
