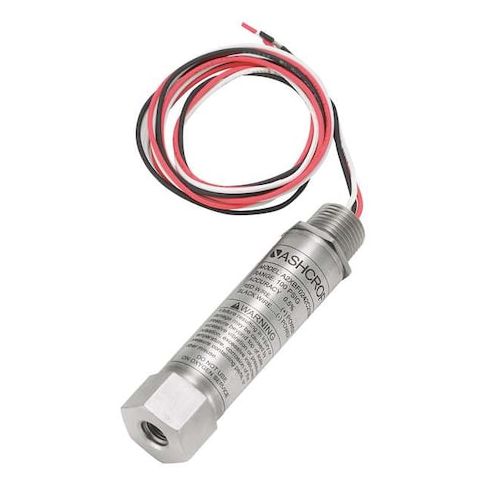

Explosion Proof Transducer, 0 to 5000 psi MPN:A2XBF0215C25000#G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0122717
Explosion Proof Transducer, 0 to 5000 psi
The Explosion Proof Transducer from Ashcroft is a rugged and reliable solution for measuring high-pressure applications in hazardous environments. With a measurement range of 0 to 5000 psi, it provides accurate readings with +/-0.50% accuracy. Its explosion-proof design ensures safe operation in areas where flammable gases or vapors are present. Suitable for use in industries such as oil and gas, chemical processing, and power generation, this transducer withstands extreme temperatures up to 257°F and is built to withstand harsh conditions. Its compact design and NEMA 4X, 7, and 9 ratings make it ideal for applications requiring high-pressure measurement in hazardous environments.
Top product features:
- Measures pressure up to 5000 psi
- Output signal is 1 to 5V DC
- Accurate to +/-0.50 Percent of Full Scale
Top product applications:
- Explosion-proof transducers are used in oil and gas applications to measure high-pressure conditions in wells, pipelines, and storage tanks.
- Explosion-proof transducers are used in the chemical industry to measure high-pressure conditions in reactors, vessels, and pipelines.
- Explosion-proof transducers are used in power generation applications to measure high-pressure conditions in turbines, compressors, and piping systems.
- Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 5,000 psi, Electrical Connections Cable & Wire Leads, Output 1 to 5V DC, Accuracy +/-0.50 Percent of Full Scale, Number of Wires 3, Process Connection Gender Female, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 36V DC, NEMA Rating NEMA 4X
- NEMA 7
- NEMA 9, IP Rating IP65, Series A2X, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 257 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.80
- Package Height: 5.30
- Package Weight: 0.63
Product info last updated on March 2, 2026 5:39pm UTC
Category: Pressure and Vacuum Measuring
