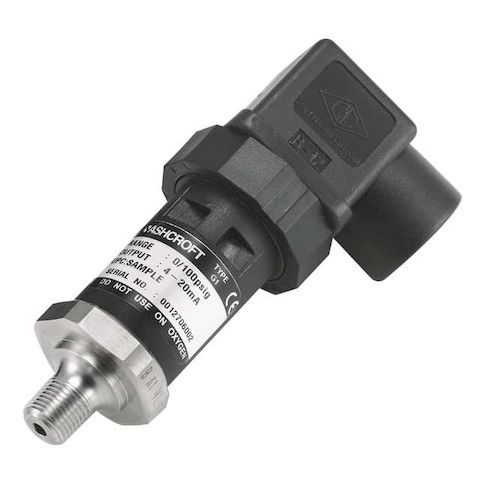

Pressure Transducer, Range 0 to 500 psi, MPN:G17M0142CD500#
Pressure Transducer, Range 0 to 500 psi,
Monitor and control pressures up to 500 psi with the Ashcroft Pressure Transducer, a reliable and accurate solution for industrial applications. This compact device features a DIN 43650 Form A connector and outputs 4 to 20mA DC, making it easy to integrate into existing systems. Its rugged design and NEMA 4X rating ensure reliable performance in harsh environments. Suitable for use in oil and gas, chemical processing, and power generation, this transducer provides +/-0.50% accuracy and is backed by a short lead time and competitive pricing. Ideal for new installations or upgrades, it's a trusted choice for pressure measurement.
Top product features:
- Measures pressure up to 500 psi
- Provides 4 to 20mA DC output
- Operates in temperatures up to 257 Degrees F
Top product applications:
- Oil and Gas Industry: The pressure transducer is used to measure the pressure of fluids in pipelines, wellheads, and other equipment.
- Chemical Processing: The transducer is applied in chemical plants to monitor the pressure of chemicals and gases in storage tanks, piping systems, and reactors.
- Power Generation: The pressure transmitter is used in power plants to measure the pressure of steam and other fluids in turbines, generators, and other equipment.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 500 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 257 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 3.40
- Package Height: 1.40
- Package Weight: 0.28
Product info last updated on January 31, 2026 12:24am UTC
Category: Pressure and Vacuum Measuring
