Pressure Transducer, Range 0 to 7500 psi, MPN:G17M0242CD7500#
Pressure Transducer, Range 0 to 7500 psi,

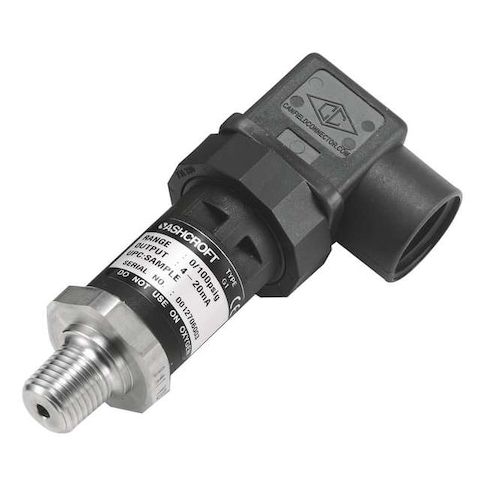

The Ashcroft G2 Pressure Transducer is a reliable and accurate solution for measuring high-pressure applications. With a range of 0 to 7500 psi and an accuracy of +/-0.50% full scale, this transducer is ideal for use in industries such as oil and gas, chemical processing, and power generation. Its compact design and NEMA 4X rating make it suitable for harsh environments, while its 4-20mA DC output provides easy integration with control systems. Applications include pressure monitoring, control, and measurement in a variety of high-pressure systems. The G2 transducer is a trusted choice for those who require precision and reliability.
Top product features:
- Measures pressure from 0 to 7500 psi
- Transmits 4 to 20mA DC output signal
- Operates in temperatures up to 257 Degrees F
Top product applications:
- Oil and Gas Industry: The pressure transducer can be used to measure the high pressures found in oil and gas wells, allowing for accurate monitoring and control of these systems.
- Industrial Automation: The pressure transmitter can be integrated into industrial automation systems to monitor and control pressure in applications such as hydraulic systems, pneumatic systems, and process control.
- Petrochemical Plants: The device can be used to measure pressure in petrochemical plants, allowing for accurate monitoring and control of processes such as distillation, refining, and chemical reactions.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 7,500 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 257 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 1.50
- Package Height: 1.40
- Package Weight: 0.20
Product info last updated on February 20, 2026 2:05pm UTC
Category: Pressure and Vacuum Measuring
