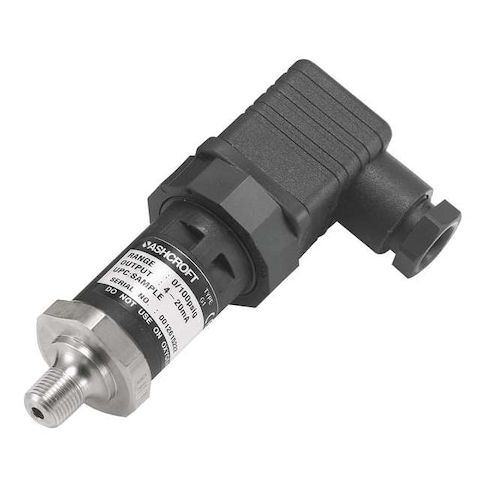

Pressure Transducer, Range 0 to 7500 psi, MPN:G17M0142DO7500#
Pressure Transducer, Range 0 to 7500 psi,
The Ashcroft G2 Pressure Transducer is a reliable and accurate solution for measuring high-pressure applications. With a range of 0 to 7500 psi, this transducer is ideal for industrial processes, such as oil and gas, chemical, and power generation. Its 4 to 20mA DC output and +/-0.50 Percent Full Scale accuracy ensure precise measurements. The transducer's NEMA 4X rating and IP67 rating provide protection against harsh environments and extreme temperatures (-40 to 257°F). Suitable for use in a variety of applications, including pressure monitoring, control, and alarm systems, the G2 Pressure Transducer is a reliable choice for demanding industries.
Top product features:
- Measures pressure up to 7500 psi
- Provides a 4 to 20mA DC output signal
- Operates in temperatures ranging from -40 to 257 degrees F
Top product applications:
- Oil and gas industry for monitoring high-pressure oil and gas wells
- High-pressure hydraulic systems in manufacturing and engineering applications
- Aerospace and defense industry for measuring pressure in aircraft and missile systems
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 7,500 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry Cable Gland, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.70
- Package Height: 6.40
- Package Weight: 0.28
Product info last updated on January 30, 2026 11:17pm UTC
Category: Pressure and Vacuum Measuring
