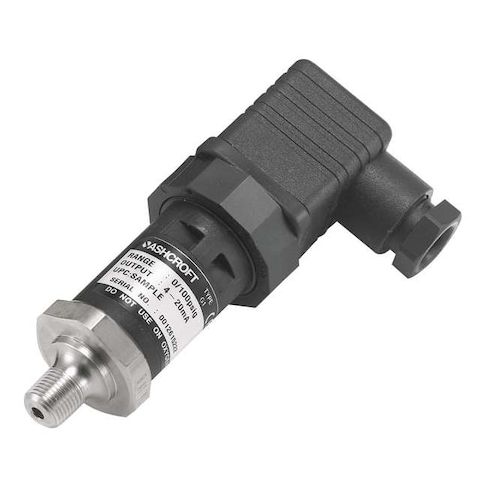

Pressure Transducer, Range 0 to 3000 psi, MPN:G17M0142DO3000#
Pressure Transducer, Range 0 to 3000 psi,
The Ashcroft G2 Series Pressure Transducer is a reliable and accurate solution for a wide range of applications, including industrial process control, oil and gas exploration, and laboratory testing. With a pressure range of 0 to 3000 psi, this transducer is capable of measuring pressures in high-pressure applications. Its 4-20mA DC output provides a precise and linear signal, making it easy to integrate into control systems. The transducer's NEMA 4X rating and IP67 rating ensure it can withstand harsh environments, making it an ideal choice for use in extreme temperatures, high humidity, and corrosive conditions.
Top product features:
- Measures pressure from 0 to 3000 psi
- Transmits output as a 4 to 20mA DC signal
- Withstands temperatures from -40 to 257 degrees F
Top product applications:
- Process Control Systems: The pressure transducer is used to measure and transmit pressure readings in industrial processes, enabling precise control and monitoring.
- Oil and Gas Industry: The device is applied in oil and gas exploration and production to measure wellhead pressure, enabling safe and efficient operations.
- Hydraulic Systems: The pressure transducer is used in hydraulic systems to measure fluid pressure, allowing for accurate control and monitoring of hydraulic equipment.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 3,000 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry Cable Gland, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 3.30
- Package Height: 1.30
- Package Weight: 0.30
Product info last updated on February 1, 2026 10:38am UTC
Category: Pressure and Vacuum Measuring
