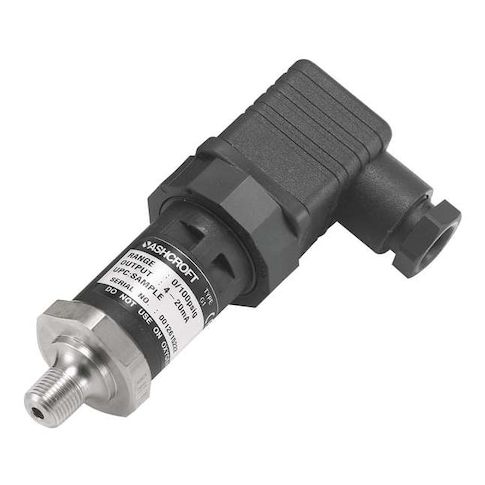

Pressure Transducer, Range 0 to 300 psi, MPN:G17M0142DO300#
Pressure Transducer, Range 0 to 300 psi,
This Ashcroft Pressure Transducer is a reliable and accurate solution for measuring pressure in a variety of applications, including industrial, commercial, and laboratory settings. Its 0-300 psi range and 4-20mA DC output make it suitable for use in control systems and data acquisition systems. The transducer's high accuracy of +/-0.50% FS and NEMA 4X rating ensure reliable performance in harsh environments. Use it in applications such as pressure monitoring, flow measurement, and process control. Its compact design and easy installation make it a versatile choice for a wide range of industries and applications.
Top product features:
- Pressure range of 0 to 300 psi
- Output signal of 4 to 20mA DC
- Accuracy of +/-0.50 percent full scale
Top product applications:
- Pressure Transducer can be used in oil and gas industry to measure pressure in pipelines and storage tanks.
- Pressure Transducer can be used in laboratory settings to measure pressure in vessels and reactors.
- Pressure Transducer can be used in industrial automation to measure pressure in hydraulic systems and pneumatic cylinders.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 300 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/8 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry Cable Gland, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.70
- Package Height: 6.40
- Package Weight: 0.29
Product info last updated on January 27, 2026 6:30am UTC
Category: Pressure and Vacuum Measuring
