Pressure Transducer, Range 0 to 7500 psi, MPN:G17M0242DO7500#
Pressure Transducer, Range 0 to 7500 psi,

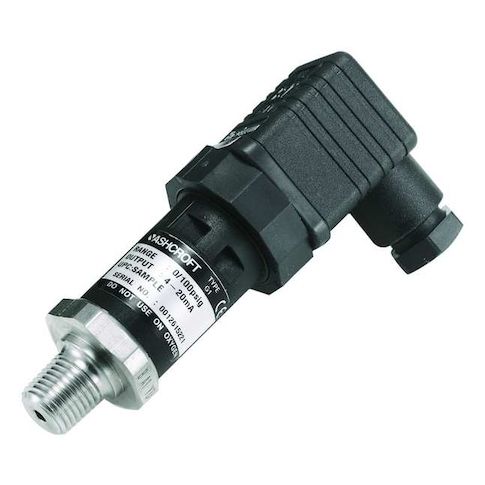

The Ashcroft G2 Series Pressure Transducer is a reliable and accurate solution for measuring high-pressure applications. With a range of 0 to 7500 psi, it can be used in a variety of industries such as oil and gas, chemical processing, and power generation. Its 4-20mA DC output provides a convenient interface for monitoring and control systems. The transducer's high accuracy of +/-0.50% FS and NEMA 4X rating make it suitable for harsh environments. It can withstand temperatures from -40°F to 257°F, making it a versatile choice for a range of applications, including pressure monitoring and control in industrial processes.
Top product features:
- Transmits pressure readings as a 4 to 20mA DC signal
- Measures pressure up to 7500 psi
- Operates in temperatures ranging from -40 to 257 degrees F
Top product applications:
- Pressure Transducer can be used in a hydraulic system to measure the pressure of a hydraulic fluid in a manufacturing plant.
- Pressure Transducer can be used in a well drilling operation to measure the pressure of the drilling fluid.
- Pressure Transducer can be used in a compressor station to measure the pressure of compressed air or gas.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 7,500 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry Cable Gland, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 3.30
- Package Height: 1.40
- Package Weight: 0.30
Product info last updated on January 25, 2026 6:40pm UTC
Category: Pressure and Vacuum Measuring
