Pressure Transducer, Range 0 to 100 psi, MPN:G17M0242DO100#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0120635

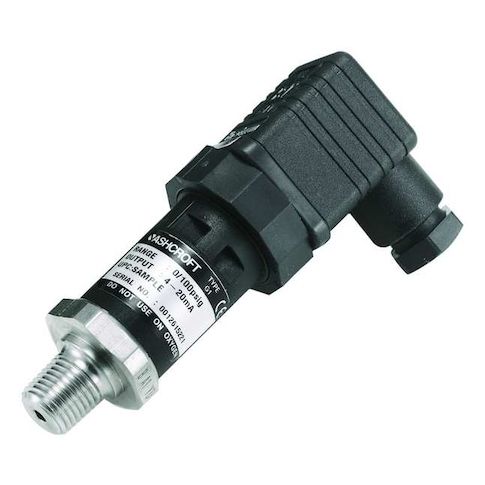

Pressure Transducer, Range 0 to 100 psi,
This Ashcroft Pressure Transducer is a reliable and accurate solution for measuring pressure in various industrial applications. With a range of 0 to 100 psi, it provides a precise reading of pressure levels. The transducer's 4 to 20mA DC output allows for easy integration with control systems, making it ideal for use in process control, automation, and monitoring. Its compact design and NEMA 4X rating ensure durability in harsh environments. Suitable for applications such as oil and gas, chemical processing, and water treatment, this transducer offers a high level of accuracy and reliability, making it a valuable asset for any industrial operation.
Top product features:
- Measures pressure within a range of 0 to 100 psi
- Outputs a 4 to 20mA DC signal
- Operates within a temperature range of -40 to 257 degrees F
Top product applications:
- Pressure Transducer can be used in a manufacturing process to monitor the pressure of a hydraulic system.
- Pressure Transducer can be used in a laboratory setting to measure the pressure of a gas or liquid in a research experiment.
- Pressure Transducer can be used in an industrial setting to monitor the pressure of a steam system.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 100 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series G2, Wiring Entry Cable Gland, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 1.40
- Package Height: 6.10
- Package Weight: 0.32
Product info last updated on January 25, 2026 11:18am UTC
Category: Pressure and Vacuum Measuring
