Explosion Proof Transducer, 0 to 100 psi MPN:A2XBF0442C2100#G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0120172

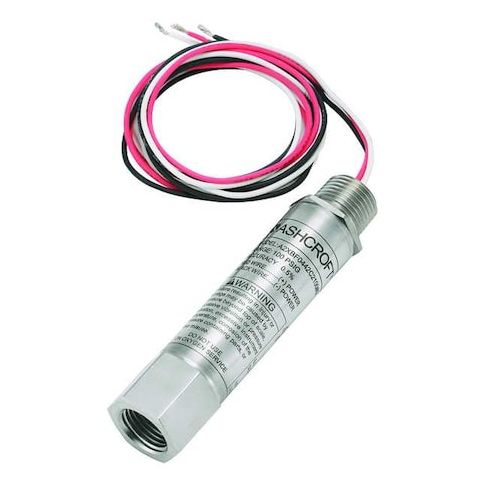

Explosion Proof Transducer, 0 to 100 psi
The Ashcroft Explosion Proof Transducer is a reliable and accurate solution for measuring pressure in hazardous environments. This 0-100 psi transducer features a robust design and meets NEMA 7 and NEMA 9 explosion-proof ratings, ensuring safe operation in areas where flammable gases or vapors are present. With a 4-20mA DC output and +/-0.50% accuracy, it provides precise measurements in a wide range of applications, including chemical processing, oil and gas, and manufacturing. Its compact size and durable construction make it an ideal choice for use in harsh environments, including those with high temperatures up to 257°F.
Top product features:
- Measures pressure from 0 to 100 psi
- Transmits a 4 to 20mA DC output
- Operates in hazardous environments with NEMA 4X, NEMA 7, and NEMA 9 ratings
Top product applications:
- Oil and Gas Industry: Explosion proof transducers are used in oil and gas facilities to measure pressure in high-risk areas, such as near pumps and compressors.
- Chemical Processing Plants: The explosion proof transducer can be used to measure pressure in chemical processing plants where flammable liquids or gases are present, providing a safe and reliable measurement solution.
- Petrochemical Facilities: The transducer's NEMA 7 and NEMA 9 ratings make it suitable for use in petrochemical facilities where hazardous materials are handled, ensuring safe and accurate pressure measurement.
- Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 100 psi, Electrical Connections Cable & Wire Leads, Output 4 to 20mA DC, Accuracy +/-0.50 Percent of Full Scale, Number of Wires 2, Process Connection Gender Female, Process Connection Size 1/2 in, Process Connection Type NPT, Power Required 12 to 30V DC, NEMA Rating NEMA 4X
- NEMA 7
- NEMA 9, IP Rating IP65, Series A2X, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 257 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 5.20
- Package Height: 1.90
- Package Weight: 0.50
Product info last updated on January 31, 2026 2:29am UTC
Category: Pressure and Vacuum Measuring
