Intrinsically Safe Transducer, 0 to100psi MPN:A4SBF0442D0100#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0120041

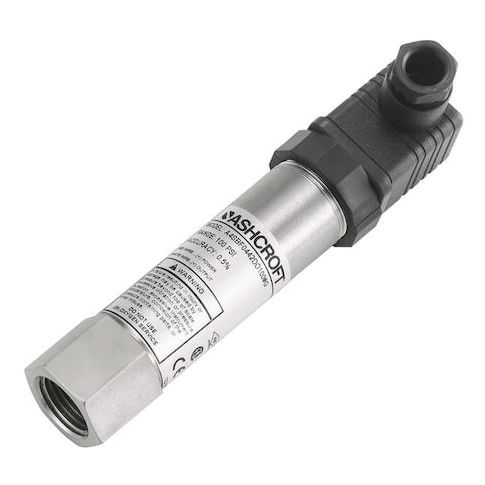

Intrinsically Safe Transducer, 0 to100psi
The Ashcroft Intrinsically Safe Transducer is a reliable and accurate pressure transmitter designed for use in hazardous locations. With a measurement range of 0 to 100psi, it provides precise pressure readings in a variety of applications, including oil and gas, chemical processing, and power generation. The transducer's 4-20mA DC output and DIN 43650 Form A connector ensure easy integration with control systems. Its NEMA 4X rating and IP65 protection make it suitable for harsh environments. With its high accuracy and versatility, this transducer is an ideal solution for industries that require precise pressure monitoring and control.
Top product features:
- Intrinsically safe design for use in hazardous environments
- Measures pressure from 0 to 100 psi
- Outputs a 4 to 20mA DC signal for easy integration with control systems
Top product applications:
- High Pressure Oil and Gas Wellhead Monitoring
- Industrial Process Control Systems for Chemical Plants
- Medical Equipment Pressure Monitoring Systems in Hospitals
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 100 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent of Full Scale, Number of Wires 2, Process Connection Gender Female, Process Connection Size 1/2 in, Process Connection Type NPT, Power Required 12 to 30V DC, NEMA Rating NEMA 4X, IP Rating IP65, Series A4, Wiring Entry With Mating Connection, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.80
- Package Height: 4.80
- Package Weight: 0.55
Product info last updated on January 31, 2026 9:19pm UTC
Category: Pressure and Vacuum Measuring
