Intrinsically Safe Transducer, 0 to 30psi MPN:A4SBF0442D030#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0120023

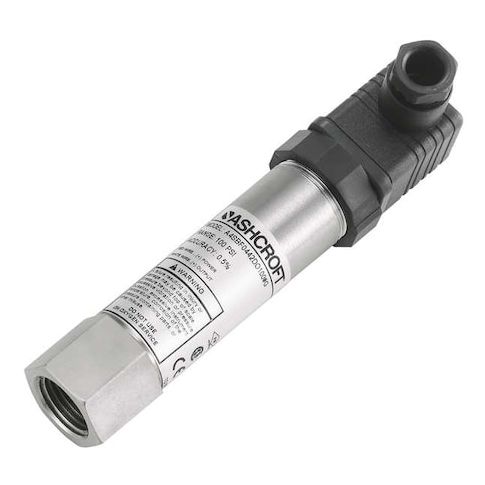

Intrinsically Safe Transducer, 0 to 30psi
The Ashcroft Intrinsically Safe Transducer is a reliable and accurate pressure transmitter designed for use in hazardous environments. With a measurement range of 0 to 30psi, it provides a 4 to 20mA DC output and meets the requirements for NEMA 4X and IP65 ratings. Suitable for use in industries such as oil and gas, chemical processing, and power generation, this transducer offers high accuracy of +/-0.50 Percent of Full Scale. Its compact design and robust construction make it ideal for installation in a variety of applications, including pressure monitoring and control systems.
Top product features:
- Measures pressure up to 30psi
- Provides a 4 to 20mA DC output signal
- Operates over a temperature range of -40 to 257 degrees F
Top product applications:
- Oil and Gas Industry: The intrinsically safe transducer is used to measure pressure in oil and gas wells, providing accurate readings in harsh environments.
- Industrial Automation: The pressure transmitter is used in industrial automation systems to monitor and control pressure in pipelines, tanks, and other equipment.
- Medical Equipment: The transducer is used in medical equipment, such as ventilators and anesthesia machines, to measure and control pressure in life-critical systems.
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 30 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent of Full Scale, Number of Wires 2, Process Connection Gender Female, Process Connection Size 1/2 in, Process Connection Type NPT, Power Required 12 to 30V DC, NEMA Rating NEMA 4X, IP Rating IP65, Series A4, Wiring Entry With Mating Connection, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.80
- Package Height: 4.60
- Package Weight: 0.55
Product info last updated on January 25, 2026 1:58am UTC
Category: Pressure and Vacuum Measuring
