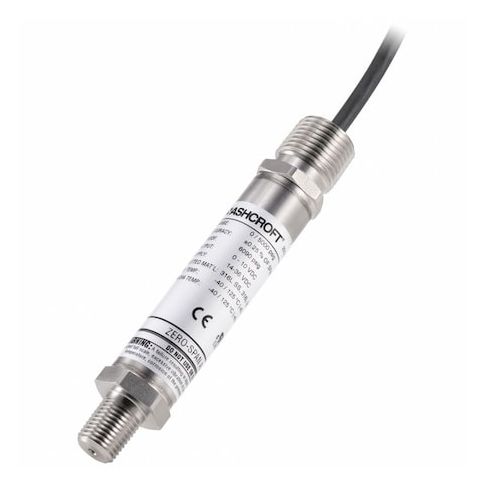

Pressure Transmitter, 500 psi MPN:E2GB7NM0242CCX03F500#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G007481571
Pressure Transmitter, 500 psi
This high-precision Pressure Transmitter from Ashcroft accurately measures up to 500 psi, ideal for industrial applications where precise pressure monitoring is critical. Its 4-20mA DC output ensures reliable transmission to control systems, while its +/-1.00% accuracy and stainless steel housing ensure durability in harsh environments. Suitable for use in oil and gas, chemical processing, and power generation, this transmitter excels in applications requiring high pressure measurement, such as boiler management, pump control, and pressure relief valve monitoring. Its compact design and NEMA 4X rating also make it suitable for use in outdoor and hazardous locations.
Top product features:
- Measures pressure up to 500 psi
- Provides a 4 to 20mA DC output
- Operates in a temperature range of -40 to 257 degrees F
Top product applications:
- Oil and Gas Industry: The pressure transmitter is used to measure the pressure of oil and gas in pipelines and reservoirs, enabling accurate monitoring and control of oil and gas production.
- Chemical Processing: The pressure transmitter is used to monitor the pressure of chemicals in storage tanks and pipelines, ensuring safe and efficient processing and handling of chemicals.
- Power Generation: The pressure transmitter is used to measure the pressure of steam and water in power generation systems, enabling accurate monitoring and control of power plant operations.
Pressure Transmitter, Maximum Pressure 500 psi, Electrical Connections 1/2 in NPT Conduit with Cable, Output 4 to 20mA DC, Accuracy +/-1.00 Percent of Span, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP66, Series E2G, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Stainless Steel, Safety Rating Class A, Group 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 3.40
- Package Height: 1.10
- Package Weight: 0.50
- Restricted States: CA
Product info last updated on January 23, 2026 6:49am UTC
Category: Pressure and Vacuum Measuring
