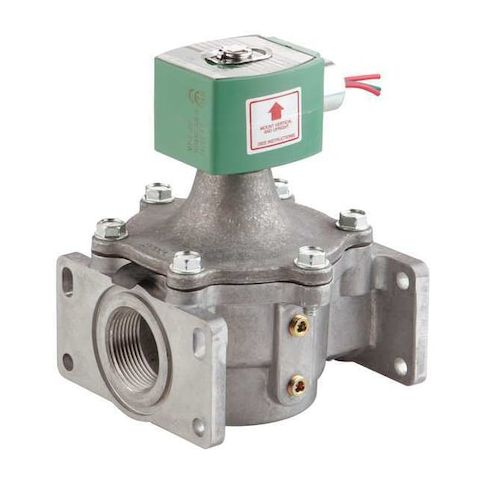

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 24V DC, High Flow Gas Shut Off MPN:8214G281-24/DC

• The ASCO 8214G281-24/DC is a 2-way, 2-position solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a pilot-operated double solenoid actuator and a normally closed valve starting configuration. The valve body is made from aluminum and includes seals constructed from NBR. It is suitable for fluids including fuel oil and gas, with a maximum fluid temperature of 125°F. The valve is designed for vertical mounting orientation and has NPTF inlet and outlet connections sized for 2-inch nominal pipe size. Its orifice diameter measures 2-3/32 inches, and it has a flow coefficient (Cv) of 55. The valve operates on 24V DC with a coil wattage of 35.1 W and includes the coil and sealing components.

  Key Features:

  • - Actuator Type: Double solenoid with pilot-operated action
  • - Valve Design: 2-Way/2-Position, Normally Closed starting configuration
  • - Body Material: Aluminum with NBR seal material
  • - Media Compatibility: Fuel oil and gas
  • - Temperature Ratings: Ambient -40°F to 140°F
  • fluid maximum 125°F
  • - Pressure Differential: Maximum 5 psi for air/inert gas and water
  • minimum 0 psi
  • - Connections: 2 in nominal pipe size, Inlet and Outlet thread type NPTF
  • - Electrical: 24V DC, 35.1 W coil wattage, Class F coil insulation
  • - Environmental Rating: Suitable for indoor and outdoor use
  • no hazardous-location certification indicated.
  • - Coil Enclosure: General purpose, watertight, with junction box
  • - Electrical Connections: 1/2 in conduit
  • - Mounting Orientation: Vertical installation
  • - Dimensions: Overall length 6-1/8 in
  • width 6-5/16 in
  • height 7-3/4 in
  • - Response Time: Approximately 1 second
  • - Included Components: Coil and sealing components supplied
  • - Standards: UL and CSA compliance.
