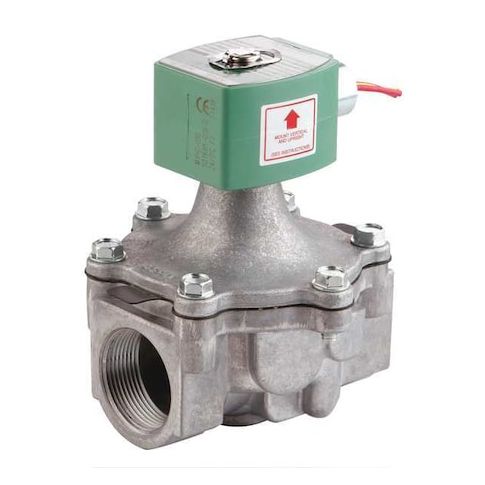

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 12V DC, High Flow, Aluminum MPN:8215G060-12/DC

• The ASCO 8215G060-12/DC is a direct-acting, normally closed solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a 2-way, 2-position valve design with a high-flow valve type that provides gas-flow control within the specified on/off operating range. The valve operates on 12V DC power with a coil wattage of 15.8 W and includes the coil and seal necessary for installation. Body Material: Aluminum

• Seal Material: NBR
• Media compatibility: Fuel oil and gas
• Operating differential: 0 to 25 psi (air/inert gas)
• 0 psi (water)
• Ambient temperature range: 14°F to 140°F
• Fluid temperature maximum: 104°F

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Operation Type: Direct Acting
  • - Voltage: 12V DC
  • - Wattage: 15.8 W
  • - Coil Enclosure: With Junction Box, Watertight
  • - Coil Insulation Class: F
  • - Includes: Coil and Seal
  • - Media: Fuel Oil, Gas
  • - Body Material: Aluminum
  • - Seal Material: NBR
  • - Nominal Pipe Size: 1-1/4 in
  • - Orifice Diameter: 1-5/8 in
  • - Coefficient of Volume (Cv): 32
  • - Operating Pressure Differential: 0 to 25 psi Air/Inert Gas
  • 0 psi Water
  • - Ambient Temperature Range: 14°F to 140°F
  • - Fluid Temperature Maximum: 104°F
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Environmental Rating: Hazardous, Indoor, Outdoor
  • - IP Rating: IP65
  • - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
  • - Thread Type: NPT (Inlet/Outlet Connection Type: NPTF)
  • - Overall Dimensions: Height 6-23/32 in
  • Length 5 in
  • Width 5-13/32 in
  • - Response Time: 120 msec
