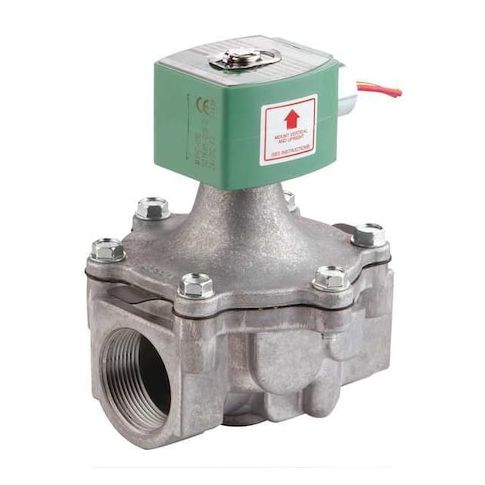

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 12V DC, High Flow, Aluminum MPN:8215G070-12/DC
The ASCO 8215G070-12/DC is a reliable and efficient solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. Its high flow rate and fast response time make it ideal for applications requiring precise control over gas flow. With a wide range of operating temperatures and pressures, this valve can be used in various environments, from heating systems to power generation. The valve's durable aluminum body and NBR seal ensure long-lasting performance and resistance to corrosion, making it a valuable addition to any industrial or commercial setting.
Top product features:
- Normally closed, direct acting solenoid valve designed for on-off control of fuel gas.
- Uses an energized coil to open or close the flow path, enabling automated control of gas flow.
- Features a high flow rate with a flow coefficient (Cv) of 35.
Top product applications:
- Fuel Gas Control in Commercial and Industrial Gas Burners
- Automated Control of Gas Flow in Oil and Gas Applications
- High-Flow Gas Control in Industrial Processes and Equipment
The ASCO 8215G070-12/DC is a normally closed, direct acting solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It uses an energized coil to open or close the flow path, enabling automated control of gas flow. The valve is constructed with an aluminum body and includes an NBR seal. It supports a nominal pipe size of 1-1/2 inches with NPTF inlet and outlet connections. The valve features a 2-way, 2-position design that controls the flow of fuel oil and gas.
Key Features:
- - Coil Voltage and Power: 12V DC with 15.8 W wattage
- - Operating pressure differential: 0–25 psi
- - Maximum Fluid Temperature: 104°F
- - Ambient Temperature Range: 14°F minimum to 140°F maximum
- - Material: Aluminum valve body with NBR seal
- - Flow Coefficient (Cv): 35
- - Orifice Diameter: 1-5/8 in
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Coil Enclosure: Watertight with junction box
- - Response Time: 120 milliseconds
- - IP Rating: IP65
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - Valve Type: High Flow
- - Includes coil and seal
- - Standards: UL and CSA for safety shutoff
- - Overall Dimensions: Height 6-23/32 in, Length 5 in, Width 5-13/32 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.40
- Package Height: 6.10
- Package Weight: 4.80
