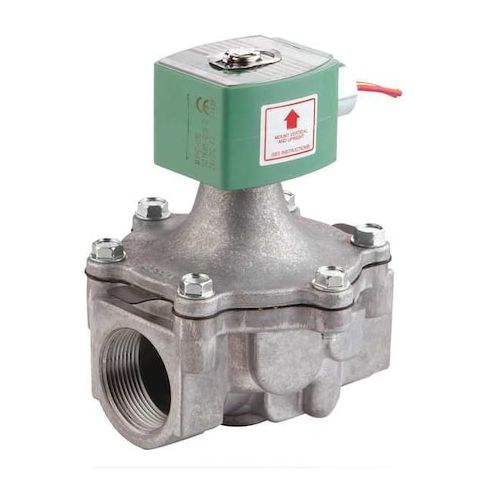

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 24V DC, High Flow, Aluminum MPN:8215G080-24/DC
The ASCO 8215G080-24/DC Solenoid Valve is a reliable and efficient solution for controlling fuel gas flow in commercial and industrial gas burners. Its direct-acting design and normally closed configuration ensure precise on-off operation, while its high flow capacity and Cv 60 rating make it ideal for applications where high flow rates are required. The valve's aluminum body and watertight coil enclosure provide durability and protection in harsh environments. Suitable for use in fuel oil and gas applications, this solenoid valve is certified to UL and CSA standards for safety shutoff, making it a trusted choice for various industrial applications.
Top product features:
- Direct-acting operation allows for fast and reliable control of fuel gas flow.
- High flow capacity enables controlled on-off operation for commercial and industrial gas burners.
- Normally closed starting configuration ensures safe shut-off in emergency situations.
Top product applications:
- Commercial and industrial gas burners
- Fuel oil and gas dispensing systems
- Industrial process control systems
The ASCO 8215G080-24/DC is a direct-acting, 2-way/2-position solenoid valve designed for controlling fuel gas flow in commercial and industrial gas burners. It features a normally closed starting configuration and includes the coil and sealing components necessary for operation. The valve body is made of aluminum and it operates at 24 V DC with a wattage of 15.8 W. Media compatibility: Fuel Oil, Gas
- fluid temperatures up to 104°F and ambient temperatures ranging from 14°F to 140°F. Flow capacity: Cv 60
- Orifice diameter: 2-3/32 in enables controlled on-off operation.
Key Features:
- - Valve Design: 2-Way/2-Position, normally closed
- - Valve Type: High Flow
- - Operation Type: Direct Acting
- - Media Compatibility: Fuel Oil, Gas
- - Body Material: Aluminum
- - Orifice Diameter: 2-3/32 in
- - Nominal Pipe Size: 2 in
- - Inlet and Outlet Connection Type: NPTF with NPT thread type
- - Maximum Operating Pressure Differential: 15 psi for Air/Inert Gas and Water
- - Electrical: 24 V DC, 15.8 W coil wattage, 60 Hz frequency
- - Coil Enclosure: Watertight with Junction Box
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Coil Insulation Class: F
- - Seals: Includes NBR seal material
- - Response Time: 120 msec
- - Dimensions (L x W x H): 6-1/8 in x 6-13/32 in x 7-5/16 in
- - IP Rating: IP65
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - Includes coil and seal
- - Certified to UL and CSA standards for safety shutoff
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.40
- Package Height: 6.20
- Package Weight: 6.30
