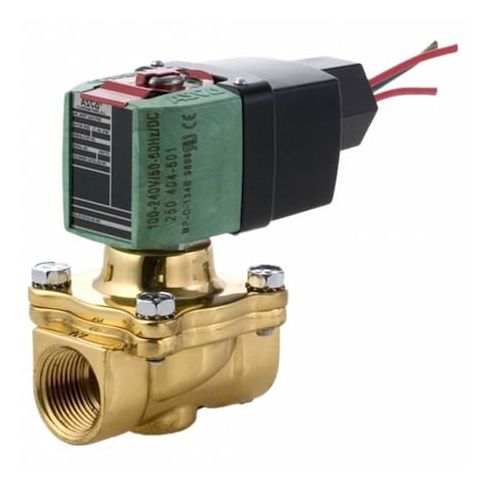

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 24V to 120V AC/DC, High Flow MPN:8210P035LF 24-120
The ASCO 8210P035LF 24-120 is a high flow, pilot operated solenoid valve designed for controlling the flow of liquids and gases remotely and automatically. Ideal for use in various applications, including water treatment, chemical processing, and HVAC systems, this valve offers a high flow rate and a wide operating voltage range of 24V to 120V AC/DC. Its brass body and NBR seal material ensure durability and resistance to corrosion, while its watertight coil enclosure provides added protection. With a fast response time of 1 second, this valve is perfect for applications requiring precise control and high flow rates.
Top product features:
- Pilot operated, normally open solenoid valve
- High flow capability with a 3/4 inch orifice diameter
- Watertight coil enclosure for protection in wet environments
Top product applications:
- Flow control in chemical processing
- Control of fluid flow in oil and gas applications
- Remote shutdown systems for industrial processes
The ASCO 8210P035LF 24-120 is a pilot operated, normally open solenoid valve designed for controlling the flow of liquids and gases remotely and automatically. Constructed with a brass body and featuring an NBR seal material, this 2-way high flow valve has a 3/4 inch orifice diameter and nominal pipe size. It supports a voltage range of 24V to 120V AC/DC at 60 Hz frequency, includes the coil, and is equipped with a watertight coil enclosure. It operates within ambient temperature range of 14°F to 140°F and with fluid temperature up to 180°F.
Key Features:
- - Valve Type: High Flow, Pilot Operated, Normally Open
- - Pipe Size and Orifice: 3/4 in nominal pipe size and orifice diameter
- - Body and Seal Material: Brass body with NBR seal
- - Operation Voltage: 24V to 120V AC/DC, 60 Hz frequency
- - Electrical Connections: 1/2 in Conduit Hub
- - Coil Enclosure: Watertight, includes coil
- - Maximum Operating Pressure Differential: 350 psi (Air/Inert Gas), 150 psi (Water), 125 psi (Light Oil)
- - Minimum Operating Pressure Differential: 0 psi (Air/Inert Gas, Light Oil, Water)
- - Mounting Orientation: Vertical
- - Response time: 1 second (typical)
- - Inlet/Outlet Connection: NPT thread type
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 4.50
- Package Height: 3.20
- Package Weight: 2.40
