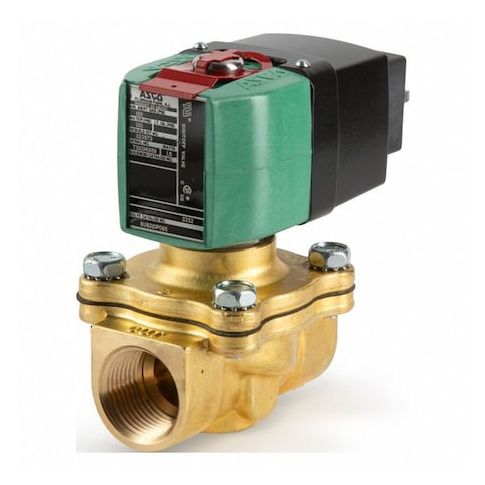

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/8 in Pipe Size, 24V to 120V AC/DC, High Flow MPN:SU8210P033LF 24-120

• The ASCO SU8210P033LF 24-120 is a pilot-operated, 2-way solenoid valve with flow capacity defined by the manufacturer's data sheet and a normally open starting configuration. It is designed to control the passage of fluids and gases in various systems. Constructed with a brass body and NBR seals, it operates within an ambient temperature range of 14°F to 140°F and a maximum fluid temperature of 180°F. The valve includes a coil compatible with 24V to 120V AC/DC electrical supply at 60 Hz and features a conduit hub enclosure with DIN electrical connections.

  Key Features:

  • - Valve Position: 2-Position
  • - Orifice Diameter: 5/8 in
  • - Nominal Pipe Size: 3/8 in
  • - Operating Pressure Differential Maximums: 350 psi (Air/Inert Gas), 125 psi (Light Oil), 150 psi (Water)
  • - Operating Pressure Differential Minimums: 0 psi (Air/Inert Gas, Light Oil, Water)
  • - Coil Insulation Class: H
  • - Wattage: 1.5 W
  • - Response Time: 1 sec
  • - Mounting Orientation: Vertical
  • - Standards: UL Listed
  • - Inlet/Outlet Connection Type: NPT
  • - Coil Enclosure: Conduit Hub
  • - Fluid compatibility is as listed in the product data sheet
  • see the data sheet for the exact fluids approved
