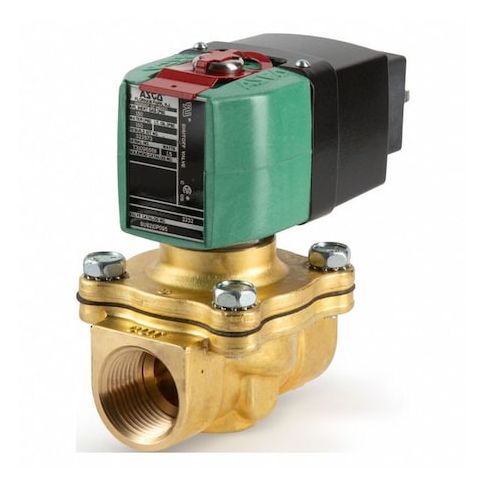

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 24V to 120V AC/DC, High Flow MPN:SU8210P034LF 24-120
The ASCO SU8210P034LF 24-120 is a versatile, high-flow solenoid valve designed for a wide range of applications, including controlling the flow of air, gases, liquids, and steam in industrial settings. Its normally open, 2-position design allows for efficient flow management, while its high orifice diameter ensures reliable operation even in high-pressure applications. Suitable for use in corrosive and hazardous environments, this valve is ideal for industries such as oil and gas, chemical processing, and power generation. Its compact design and fast response time make it an excellent choice for applications requiring precise control and high flow rates.
Top product features:
- Normally open, 2-position valve type
- High flow rate
- Pilot-operated design for control of various fluids and gases
Top product applications:
- Compressed Air Systems
- Gas Processing Plants
- Industrial Water Treatment Systems
The ASCO SU8210P034LF 24-120 is a pilot-operated solenoid valve designed to control the flow of air, inert gases, hazardous gases (as defined in product media compatibility), hazardous liquids (as defined in product media compatibility), ammonia, fuel oil, light oil, natural gas, oxygen, steam, and water. It features a normally open, 2-position, high flow valve type with a 5/8 inch orifice diameter and a nominal pipe size of 1/2 inch. The valve includes a coil and is rated for operation within the specified voltage range: 24-120 V AC/DC, 60 Hz. Mounting orientation: Vertical and operates within an ambient temperature range of 14°F to 140°F, with a maximum fluid temperature of 180°F.
Key Features:
- - Valve Type: Pilot Operated, High Flow
- - Valve Positions and Configuration: 2-Position, Normally Open
- - Orifice Diameter: 5/8 in
- Nominal Pipe Size: 1/2 in
- - Operating Voltage: rated for operation within the specified voltage range: 24-120 V AC/DC, 60 Hz
- - Coil: Included with H class insulation
- - Connections: Inlet and Outlet NPT thread type
- Electrical connections DIN with 1/2 in conduit hub
- - Operating Pressure Differential Maximum: 350 psi Air/Inert Gas, 125 psi Light Oil, 150 psi Water
- Minimum 0 psi for these media
- - Seal Material: NBR (Buna-N)
- - Ambient Temperature Range: 14°F to 140°F
- Maximum Fluid Temperature: 180°F
- - Response Time: 1 second
- - Environmental suitability: for corrosive and hazardous environments
- indoor or outdoor use
- - Coil Enclosure: Conduit Hub
- - Mounting Orientation: Vertical
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.30
- Package Height: 5.80
- Package Weight: 2.55
