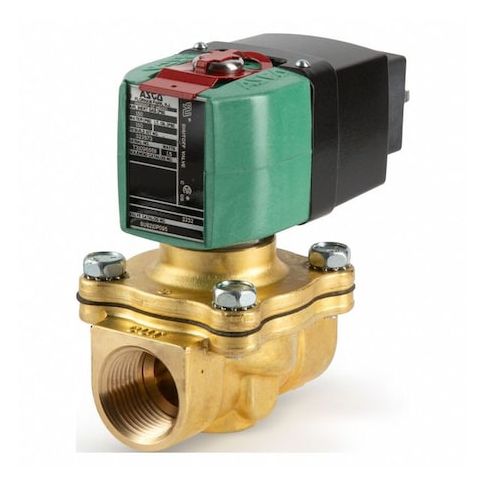

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:SU8210P093 100-240

• The ASCO SU8210P093 100-240 is a 2-way, normally closed pilot-operated solenoid valve designed for controlling the flow of air, inert gases, and water. It features a brass valve body with NBR seals. Coil rated for 100 to 240 V AC/DC

• AC operation at 60 Hz. The valve supports vertical mounting orientation and has a 5/8 inch orifice diameter with 3/8 inch NPT inlet and outlet connections. Ambient Temperature Range: 14°F to 140°F. Fluid Temperature Maximum: 180°F.

  Key Features:

  • - Valve Type: Pilot Operated, High Flow
  • - Valve Positions: 2-Position, Normally Closed configuration
  • - Body Material: Brass with NBR seal material
  • - Orifice Diameter: 5/8 inch
  • - Nominal Pipe Size: 3/8 inch NPT inlet and outlet connections
  • - Operating Pressure Differential: 0 to 350 psi for air/inert gas
  • 0 to 150 psi for water
  • - Ambient Temperature Range: 14°F minimum to 140°F maximum
  • - Fluid Temperature Maximum: 180°F
  • - Electrical: Coil rated for 100 to 240 V AC/DC
  • AC operation at 60 Hz
  • - Coil Insulation Class: H with conduit hub enclosure
  • - Electrical Connections: DIN with 1/2 inch conduit hub
  • - Mounting Orientation: Vertical
  • - Response Time: 1 second
  • - Standards: UL Listed
