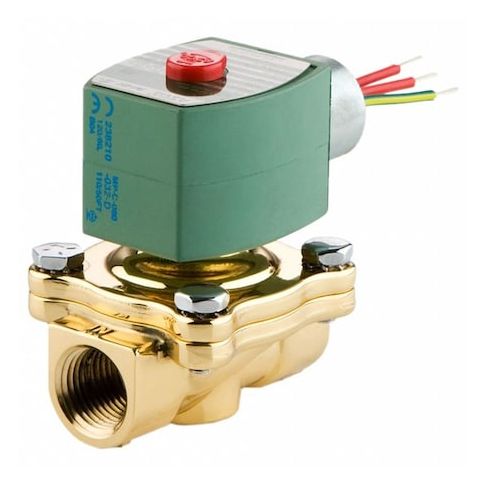

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 12V DC, High Flow, Brass MPN:8210G022LF 12/DC
The ASCO 8210G022LF 12 VDC is a reliable and high-flow solenoid valve designed for controlling the flow of air, inert gases, light oil, and water in various industrial systems. Its pilot-operated, normally closed design provides automated and remote actuation, making it ideal for applications such as HVAC, water treatment, and chemical processing. With a high-flow valve type and 1-1/2 inch nominal pipe size, this valve supports efficient fluid transfer in a wide range of temperatures and pressures. Suitable for indoor and outdoor use, it offers a reliable and cost-effective solution for demanding industrial applications.
Top product features:
- Pilot-operated, normally closed solenoid valve design allows for automated and remote actuation through an energized coil.
- High-flow valve type with a 1-1/4 inch orifice diameter enables efficient fluid flow in various industrial systems.
- NBR (Buna-N) seal material provides reliable sealing and prevents fluid leakage.
Top product applications:
- Air Compressor Control System
- Industrial Water Treatment Systems
- Oil and Gas Wellhead Control Systems
The ASCO 8210G022LF 12 VDC is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gases, light oil, and water in various industrial systems. It features a high-flow valve type with a 1-1/4 inch orifice diameter and 2-way valve configuration, providing automated and remote actuation through an energized coil. The valve supports a nominal pipe size of 1-1/2 inches and is suitable for indoor and outdoor environments with ambient temperatures ranging from 14°F to 140°F and fluid temperatures up to 180°F.
Key Features:
- - Body Material: Brass
- - Valve Operation: Pilot Operated, Normally Closed, 2-Position
- - Media Compatibility: Air, Inert Gases, Light Oil, Water
- - Orifice Diameter: 1-1/4 in
- - Nominal Pipe Size: 1-1/2 in
- - Pressure Range: 5 psi minimum to 350 psi maximum for Air/Inert Gas
- 5 psi to 100 psi for Light Oil
- 5 psi to 150 psi for Water
- - Electrical Specifications: 12 VDC, 6.1 W wattage, coil insulation class F
- - Coil Enclosure: Conduit hub size 1/2 in
- - Seal Material: NBR (Buna-N)
- - Mounting Orientation: Vertical
- - Environmental Rating: Indoor and Outdoor use
- - Standards: UL Listed
- - Response Time: 1 second
- - Connections: Inlet and outlet with NPTF thread type
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.50
- Package Height: 6.50
- Package Weight: 7.40
