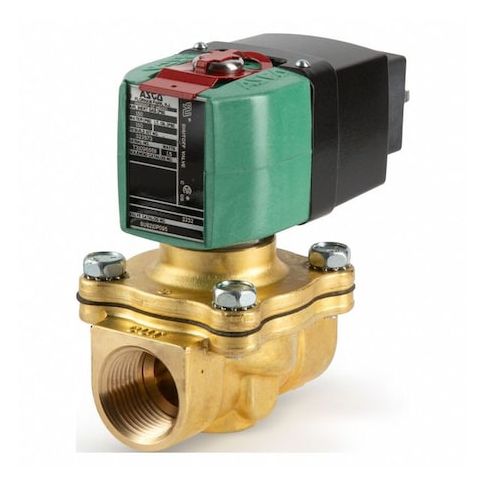

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/8 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:SU8210P033 100-240
The ASCO SU8210P033 is a high-performance, pilot-operated solenoid valve designed to control fluid or gas flow in a variety of applications. Its 2-Way, normally open configuration allows for efficient flow control, making it ideal for use in water treatment, chemical processing, and HVAC systems. With a brass body and 5/8 inch orifice diameter, this valve can handle high flow rates and pressures, while its wide operating temperature range (14°F to 140°F) and fluid temperature range (up to 180°F) ensure reliable performance in demanding environments. Its compact design and DIN electrical connections make it easy to integrate into existing systems.
Top product features:
- Pilot-operated, normally open solenoid valve design allows for controlled fluid or gas flow via an electrically energized coil.
- The valve features a 2-Way, high flow valve configuration with a brass body and an orifice diameter of 5/8 inch.
- The valve operates within ambient temperatures from 14°F to 140°F and can handle fluid temperatures up to 180°F.
Top product applications:
- Pneumatic systems for industrial automation
- Hydraulic systems for heavy machinery
- Medical equipment for fluid delivery and control
The ASCO SU8210P033 100-240 is a pilot-operated, normally open solenoid valve designed to control fluid or gas flow via an electrically energized coil. It features a 2-Way, high flow valve configuration with a brass body and an orifice diameter of 5/8 inch. This valve operates within ambient temperatures from 14°F to 140°F and can handle fluid temperatures up to 180°F.
Key Features:
- - Valve Type: 2-Way, Pilot Operated
- - Valve Starting Configuration: Normally Open
- - Body Material: Brass
- - Orifice Diameter: 5/8 in
- - Nominal Pipe Size: 3/8 in
- - Ambient Temperature Range: 14°F to 140°F
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential: 0 psi minimum
- maximum 350 psi for air/inert gas, 150 psi for water, 125 psi for light oil
- - Coil Voltage: 100V to 240V AC/DC
- - Coil Wattage: 1.5 W
- - Coil Insulation Class: H
- - Electrical Connections: DIN with 1/2 in Conduit Hub
- - Coil Enclosure: Conduit Hub
- - Seal Material: NBR
- - Mounting Orientation: Vertical
- - Response Time: 1 second
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.90
- Package Height: 5.10
- Package Weight: 2.15
