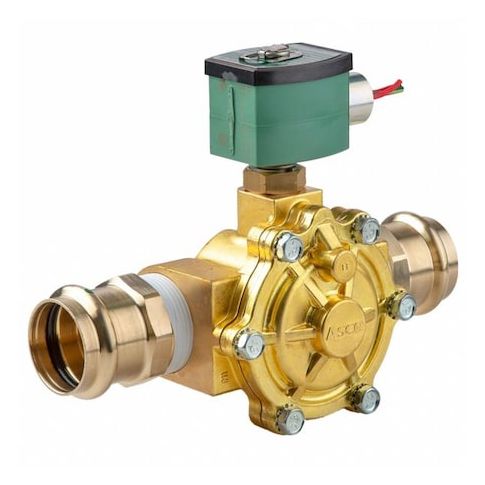

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 24V DC, High Flow, Brass MPN:K210G004LFXP 24/DC
The ASCO K210G004LFXP 24/DC solenoid valve is a high-flow, pilot-operated valve designed for controlling the flow of various fluids and gases. Its 1-inch nominal pipe size and orifice diameter make it ideal for applications such as HVAC, oil and gas, and water treatment. The valve's brass body and NBR/PTFE seals ensure durability and resistance to corrosion. With a maximum flow coefficient of 13 and a Cv of 13, this valve supports high-flow applications. Its compact design and watertight coil enclosure make it suitable for a wide range of industries, including oil and gas, water treatment, and HVAC.
Top product features:
- High Flow
- Pilot Operated
- Normally Closed
Top product applications:
- Industrial Air Compressor System
- Gas Distribution System
- Petrochemical Processing Plant
The ASCO - K210G004LFXP 24/DC is a pilot-operated, normally closed solenoid valve designed to control the flow of fluids and gases such as air, ammonia, fuel oil, inert gases, liquid propane gas, natural gas, oxygen, and water. It features a 1-inch nominal pipe size and orifice diameter and supports a maximum flow coefficient (Cv) of 13. It is constructed with a brass body and includes both coil and sealing components for installation.
Key Features:
- - Valve Type: High Flow, Pilot Operated
- - Valve Positions: 2-Position, Normally Closed
- - Body Material: Brass
- - Nominal Pipe Size & Orifice Diameter: 1 in
- - Operating Pressure Differential: Maximum 350 psi (Air/Inert Gas), 150 psi (Water)
- Minimum 5 psi (Water)
- - Media Compatibility: Air, Ammonia, Fuel Oil, Inert Gases, Liquid Propane Gas, Natural Gas, Oxygen, Water
- - Ambient Temperature Range: 32°F to 125°F
- - Fluid Temperature Maximum: 180°F
- - Coil Power: 11.6 W at 24 V DC
- - Coil Enclosure: Watertight with Class F Insulation
- - Seal Material: NBR, PTFE
- - Includes Coil and Seal
- - Standards: CSA, SDWA, UL Listed
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 5.30
