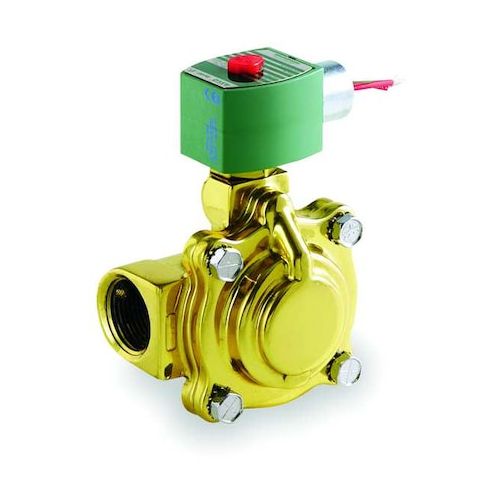

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 24V DC, High Flow, Brass, NBR MPN:8210G004LF 24/DC

• The ASCO 8210G004LF 24/DC is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body construction and operates with a 24V DC coil. The valve has a 1-inch nominal pipe size with NPTF inlet and outlet connections and a 1-inch orifice diameter. Intended for indoor and outdoor industrial use, this valve is designed for indoor and outdoor environments. Coil and seals included.

  Key Features:

  • - Valve Design: 2-Way/2-Position with 2-Position actuator states
  • - Operating Pressure Differential: 5 to 125 psi for air/inert gases, 5 to 100 psi for light oil, 5 to 150 psi for water
  • - Temperature Ratings: Ambient 14°F to 140°F
  • Fluid temperature up to 180°F
  • - Electrical: 24V DC voltage with 6.1 W coil wattage
  • includes coil with Class F insulation
  • - Construction: Brass body material
  • seal material is NBR
  • - Dimensions: Overall length 3-3/8 in
  • width 3-3/4 in
  • height 5-21/32 in
  • - Mounting Orientation: Vertical
  • - Environmental and Protection Ratings: IP65, NEMA 1, 2, 3, 3S, 4, 4X
  • rated for indoor and outdoor use
  • - Electrical Connections: 1/2 in conduit hub
  • - Response Time: Approximately 1 second
  • - Compliance: Certified to CSA and UL standards
  • - Coil Enclosure: Watertight
