Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 110V/50V, 120V/60V, High Flow MPN:8210G004LF 120/60, 110/50
Free Shipping
In Stock

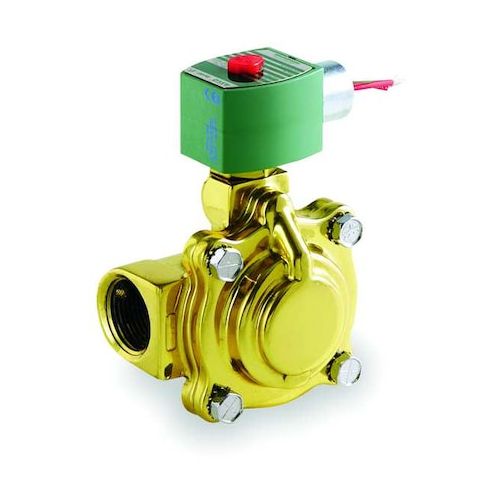

The ASCO 8210G004LF solenoid valve is a high-performance solution for controlling air, inert gases, light oil, and water flow in various industrial systems. Suitable for indoor and outdoor use, this 2-way, 2-position pilot-operated valve features a normally closed starting configuration and operates with a nominal pipe size of 1 inch. Its high flow rate and fast response time make it ideal for applications in manufacturing, oil and gas, and water treatment, while its compact design and IP65-rated coil enclosure ensure reliable performance in harsh environments.
Top product features:
- 2-Way/2-Position valve design allows for precise control over fluid flow.
- Normally Closed starting configuration enables automatic shut-off in case of power loss.
- IP65-rated coil enclosure provides protection against dust and water ingress.
Top product applications:
- Air control in industrial systems
- Inert gas control in medical and laboratory equipment
- Water control in irrigation systems
The ASCO 8210G004LF is a 2-way, 2-position pilot-operated solenoid valve with a normally closed starting configuration. It is designed to control the flow of air, inert gases, light oil, and water in various industrial systems. This valve includes the coil and sealing components, and is suitable for indoor and outdoor environments with a vertical mounting orientation. It operates with a nominal pipe size of 1 inch and features NPTF inlet and outlet connections.
Key Features:
- - Valve Design: 2-Way/2-Position, pilot operated
- - Valve Starting Configuration: Normally Closed
- - Media Compatibility: Air, Inert Gases, Light Oil, Water
- - Operating Pressure Differential: 5 to 150 psi (Air/Inert Gas, Water)
- 5 to 100 psi (Light Oil)
- - Orifice Diameter: 1 in
- - Flow Coefficient (Cv): 13
- - Voltage: 110V/50 Hz, 120V/60 Hz
- - Wattage: 6.1 W
- - IP65-rated coil enclosure
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit Hub
- - Material: Brass valve body with NBR seal
- - Dimensions: Overall length 3-3/8 in, width 3-3/4 in, height 5-21/32 in
- - Response Time: 1 second
- - Includes: Coil and seal
- - Environmental Rating: Indoor and Outdoor use
- - Certification: CSA, UL
- - Mounting Orientation: Vertical
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 7.50
- Package Height: 6.30
- Package Weight: 4.78
