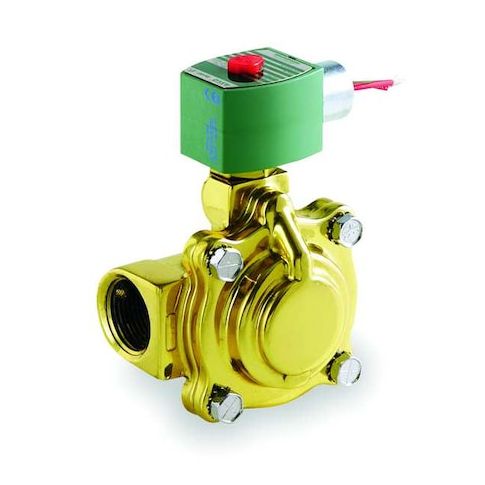

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 12V DC, High Flow, Brass, NBR MPN:8210G004LF 12/DC
The ASCO 8210G004LF 12/DC is a high-performance, pilot-operated solenoid valve designed for a wide range of applications, including air, inert gases, light oil, and water control. Its high flow rate and 2-way/2-position configuration make it ideal for use in demanding industrial settings, such as manufacturing, oil and gas, and water treatment. The valve's normally closed configuration and 12V DC operation ensure reliable and efficient control, while its brass body and NBR seals provide long-lasting durability. Suitable for indoor and outdoor use, this valve is a reliable solution for applications requiring precise fluid control and high flow rates.
Top product features:
- Pilot-operated design allows for high flow rates
- 2-way/2-position configuration enables control of fluid flow in two distinct positions
- Normally closed configuration ensures fluid flow is interrupted when power is removed
Top product applications:
- Air Compressor Control
- Industrial Process Control
- Pneumatic Circuit Control
The ASCO 8210G004LF 12/DC is a pilot-operated, 2-way/2-position solenoid valve with a normally closed configuration, designed to control the flow of air, inert gases, light oil, and water. Constructed with a brass valve body and equipped with a coil enclosure IP65-rated, this valve operates on 12 V DC and includes the coil and seals. The valve features a vertical mounting orientation
- orifice diameter: 1 inch.
Key Features:
- - Valve Type: High Flow, Pilot Operated
- - Valve Design: 2-Way/2-Position
- Valve Positions: 2-Position
- Normally Closed
- - Body Material: Brass
- Seal Material: NBR (Buna-N)
- - Voltage: 12 V DC
- Wattage: 6.1 W
- - Flow Coefficient (Cv): 13
- - Inlet and Outlet Connection Type: NPTF
- Thread Type: NPT
- Nominal Pipe Size: 1 in
- Center Line Pipe Size: 4-1/64 in
- - Maximum Operating Pressure Differential: 150 psi Air/Inert Gas and Water, 100 psi Light Oil
- Minimum Pressure Differential: 5 psi Air/Inert Gas, Light Oil, Water
- - Maximum Fluid Temperature: 180°F
- Ambient Temperature Range: 14°F to 140°F
- - Coil Insulation Class: F
- Response Time: 1 sec
- - Electrical Connections: 1/2 in Conduit Hub
- - Environmental Rating: Indoor, Outdoor
- IP Rating: 65
- NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - Includes coil and seals
- - Standards: CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.60
- Package Height: 6.10
- Package Weight: 5.60
