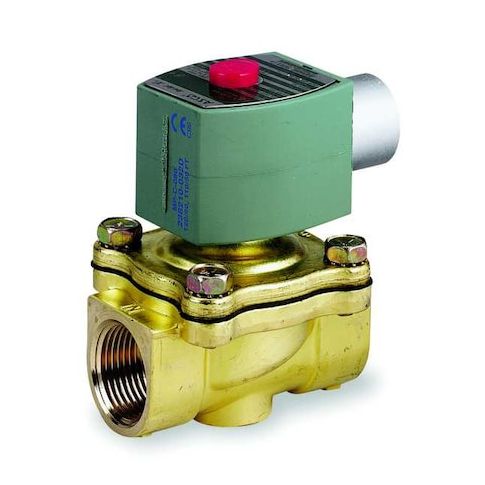

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 24V DC, High Flow, Brass, NBR MPN:8210G009LF 24/DC
The ASCO 8210G009LF 24/DC is a reliable and efficient solenoid valve designed for controlling the flow of air, inert gas, and water. Its high flow capacity and 2-way/2-position configuration make it ideal for a variety of applications, including industrial processes, HVAC systems, and laboratory settings. The valve's normally closed configuration and brass body ensure a secure seal, while its NBR seals and 24V DC operation provide a long-lasting and energy-efficient solution. With its compact size and fast response time, this valve is perfect for use in tight spaces and high-pressure systems, making it a valuable addition to any industrial or commercial setting.
Top product features:
- Pilot-operated design for controlling the flow of air, inert gas, and water
- Normally closed configuration for automatic shut-off
- Brass body and NBR seals for high-flow and long-lasting performance
Top product applications:
- Automotive Air Conditioning System
- Pneumatic Tool Control
- Water Treatment Plant
The ASCO 8210G009LF 24/DC is a pilot-operated, 2-way/2-position solenoid valve with a normally closed configuration. Designed for controlling the flow of air, inert gas, and water, this valve features a brass body and NBR seals. The valve operates on 24V DC with an 11.6 W coil and includes the coil and seal as part of the package.
Key Features:
- - Valve Type and Design: Flow capacity Cv = 5, 2-way/2-position, normally closed
- - Materials: Brass body and NBR seal material
- - Electrical: 24V DC voltage, 11.6 W coil wattage, coil insulation class F
- - Connections: Inlet and outlet NPTF threaded 3/4 in nominal pipe size
- - Operating Pressure Differential: 5 to 100 psi for air/inert gas
- 5 to 125 psi for water and light oil
- - Temperature Ratings: Ambient 14°F to 140°F
- fluid up to 180°F
- - Flow Capacity: Cv = 5, with a 3/4 in orifice diameter
- - Environmental and Enclosure Ratings: IP65
- NEMA 1, 2, 3, 3S, 4, 4X enclosure classifications
- - Mounting: Vertical orientation recommended
- - Response Time: 1 second
- - Electrical Connection: 1/2 in conduit hub
- - Additional: Coil enclosure IP65 rated, includes coil and seal, overall dimensions approximately 3-21/32 in height, 2-9/32 in length, 2-13/16 in width
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.20
- Package Height: 3.10
- Package Weight: 2.40
