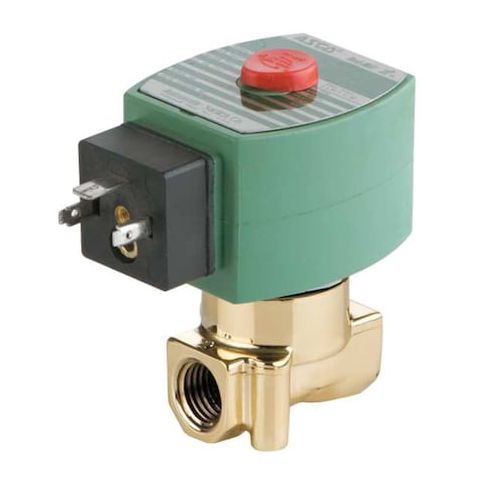

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, High Flow, Brass, NBR MPN:8262H208LF 12/DC
The ASCO 8262H208LF 12/DC is a reliable and efficient 2-way/2-position solenoid valve designed for use in a variety of applications where precise fluid control is required. With its normally closed configuration and direct-acting design, this valve provides fast response times and high flow rates, making it ideal for use in equipment such as pumps, valves, and other fluid-handling systems. Its corrosion-resistant brass body and NBR seals ensure reliable operation in harsh environments, while its compact size and IP65/NEMA 4X enclosure ratings make it suitable for use in a range of settings, from industrial to laboratory applications.
Top product features:
- Direct-acting operation allows for fast and reliable valve response
- Normally closed configuration enables the valve to start in a closed position
- High flow capability supports efficient fluid handling and transfer
Top product applications:
- Equipment using fluids and gases compatible with 1/4 in NPTF connections
- Applications with operating pressure differential of 0–35 psi
- Equipment with maximum fluid temperature 180°F
The ASCO 8262H208LF 12/DC is a Direct-acting, 2-way/2-position solenoid valve with normally closed configuration. Its brass body construction and inclusion of coil and seal components support reliable operation in an operating temperature range: -13°F to 131°F. Applications limited to equipment using fluids and gases compatible with 1/4 in NPTF connections, 0–35 psi differential, and maximum fluid temperature 180°F. The valve supports a nominal pipe size of 1/4 inch with NPTF inlet and outlet connections and is IP65 and NEMA 4X enclosure ratings.
Key Features:
- - Operation Type: Direct-acting, 2-way/2-position solenoid valve with normally closed configuration
- - Valve Design: 2-Way/2-Position with Normally Closed starting position
- - Body Material: Brass
- - Nominal Pipe Size: 1/4 in with NPT thread type connections
- - Operating Pressure Differential: 0 to 35 psi for air/inert gas, light oil, and water
- - Maximum Fluid Temperature: 180°F
- - Coil: Includes coil with 12 VDC voltage, Class H insulation, and 11.6 W power consumption
- - Electrical Connections: 16 in leads
- - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
- - Enclosure Ratings: IP65 and NEMA 4X
- - Seal Material: NBR
- - Orifice Diameter: 7/32 in
- - Mounting Orientation: Horizontal or Vertical
- - Response Time: 1 second
- - Compliance and Standards: CSA, UL certified
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.70
- Package Height: 3.50
- Package Weight: 1.46
