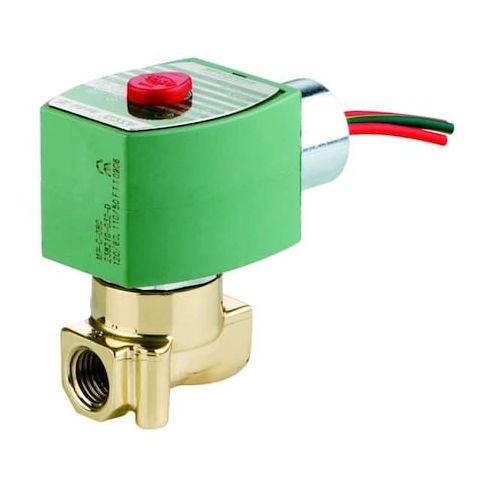

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, High Flow, Brass, NBR MPN:8262H020LF 12/DC

• The ASCO 8262H020LF 12/DC is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It features a brass body and includes both the coil and sealing components. The valve operates on a 12V DC power supply with a wattage of 10.6 W and has an orifice diameter of 3/32 inch. Compatible with the media types listed in this datasheet (air, ammonia, biodiesel fuel, fuel oil, hot water, inert gases, light oil, liquid propane gas, natural gas, oxygen, steam, and water) within the operating temperature range of -13°F to 131°F ambient and maximum fluid temperature 180°F, and within the operating differential pressure ranges: 0 to 235 psi for air/inert gases

• 0 to 160 psi for water and light oil. The valve can be mounted either horizontally or vertically to accommodate installation requirements.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Operation Type: Direct Acting
  • - Body Material: Brass
  • - Orifice Diameter: 3/32 in
  • - Nominal Pipe Size: 1/4 in with NPTF inlet and outlet connections
  • - Electrical: 12V DC voltage, 10.6 W wattage, with 16 in leads for connections
  • - Coil Enclosure and Insulation Class: H
  • - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
  • - NEMA Enclosure Rating: 4X
  • - IP Rating: 65
  • - Operating Temperature Range: -13°F to 131°F ambient
  • maximum fluid temperature 180°F
  • - Operating Pressure Differential: 0 to 235 psi for air/inert gases
  • 0 to 160 psi for water and light oil
  • - Flow Coefficient (Cv): 0.21
  • - Dimensions: Overall Length 1-5/16 in, Width 1-11/16 in, Height 2-31/32 in
  • - Includes Coil and Seal
  • - Response Time: 1 second
  • - Compliance: CSA and UL certified
