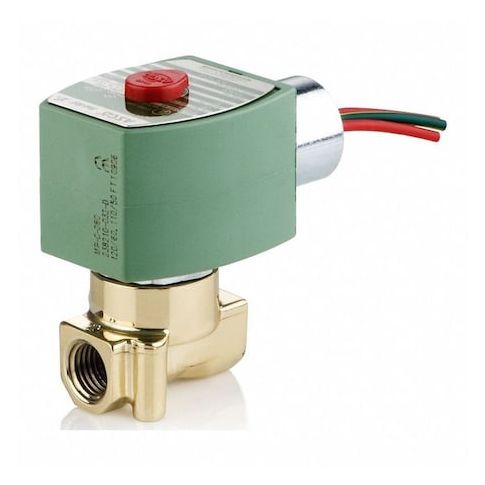

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 110V AC, 120V AC, High Flow MPN:8262H021V1V 120/60, 110/50
The ASCO 8262H021V1V Solenoid Valve is a reliable and efficient solution for various applications, including fuel oil and gas systems. Its direct-acting, 2-way design with normally closed starting configuration ensures precise control and flow management. Suitable for use in both horizontal and vertical orientations, this valve supports high flow rates and operates within a wide temperature range. Ideal for industrial, commercial, and residential applications, it provides a durable and cost-effective solution for managing fuel oil and gas systems, ensuring safe and efficient operation. Its compact design and easy installation make it a convenient choice for a variety of settings.
Top product features:
- Direct-acting operation allows for fast and reliable valve response.
- 2-way valve configuration enables flow control in both directions.
- Normally closed starting configuration ensures that the valve is closed when not energized.
Top product applications:
- Fuel Oil Systems
- Gas Distribution Systems
- Pneumatic and Hydraulic Control Systems
The ASCO 8262H021V1V Solenoid Valve is a direct-acting, 2-way valve with a normally closed starting configuration. It features a brass body and includes the coil and sealing components required for operation. Media compatibility: Fuel Oil, Gas. The valve supports a nominal pipe size of 1/4 inch with NPTF inlet and outlet connections. Mounting orientations supported: Horizontal or Vertical. Compatible with pneumatic and hydraulic control systems operating within specified electrical parameters (110-120 V AC, 50/60 Hz, 9.1 W).
Key Features:
- - Body Material: Brass
- - Operation Type: Direct Acting
- - Valve Positions: 2-Position
- - Valve Starting Configuration: Normally Closed
- - Valve Ways: 2-Way
- - Nominal Pipe Size: 1/4 in
- - Inlet/Outlet Connection Type: NPTF
- - Mounting orientations: Horizontal or Vertical
- - Electrical Voltage: 110-120 V AC
- - Frequency: 50 Hz, 60 Hz
- - Wattage: 9.1 W
- - Coil Enclosure: Without junction box
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit Hub
- - Media compatibility: Fuel Oil, Gas
- - Maximum Fluid Temperature: 180°F
- - Minimum Ambient Temperature: -13°F
- - Operating Pressure Differential (Air/Inert Gas): 0 psi minimum to 350 psi maximum
- - Response time: 1 second (typical under specified operating conditions)
- - Orifice Diameter: 3/32 in
- - Seal Material: FKM
- - Environmental rating: Indoor, Outdoor use
- - Includes Coil: Yes
- - Includes Seal: Yes
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.60
- Package Height: 3.40
- Package Weight: 1.15
