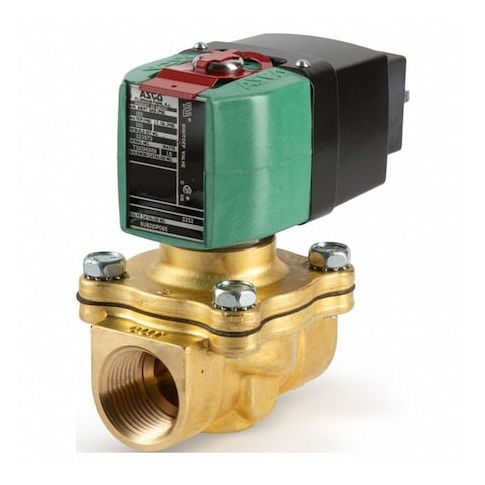

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:SU8210P100LF 100-240
Free Shipping
In Stock
The ASCO SU8210P100LF 100-240 is a high-flow, pilot-operated solenoid valve ideal for controlling gases and liquids in various applications. Its normally closed design allows for automated control, and the energized coil moves a plunger to open or close the flow path. Suitable for use in temperatures ranging from -10°C to 60°C, this valve is perfect for applications in industrial, commercial, and residential settings. Its high flow rate and wide operating pressure differential make it suitable for use with air, inert gas, light oil, and water. This reliable valve is UL Listed and features a fast response time of just 1 second.
Top product features:
- Pilot-operated, high-flow 2-way solenoid valve for control of gases and liquids
- Normally closed valve uses an energized coil to move a plunger, opening or closing the flow path for automated control
- Operating ambient temperature range: -10°C to 60°C and maximum fluid temperature: 82°C
Top product applications:
- Automotive Fuel Injection Systems
- Industrial Process Control Systems
- Medical Gas Systems
The ASCO SU8210P100LF 100-240 is a Pilot-operated, high-flow 2-way solenoid valve for control of gases and liquids
- compatibility per datasheet. This normally closed valve uses an energized coil to move a plunger, opening or closing the flow path for automated control. Vertical installation is supported. Operating ambient temperature range: -10°C to 60°C
- maximum fluid temperature: 82°C.
Key Features:
- - Valve Type: High Flow, Pilot Operated
- - Valve Positions: 2-Way, Normally Closed
- - Nominal Pipe Size: 2 in with NPT inlet and outlet connections
- - Orifice Diameter: 1 to 3/4 in
- - Operating Pressure Differential: 5 to 350 psi for air/inert gas, 5 to 90 psi for light oil, 5 to 125 psi for water
- - Body Material: Brass with NBR seal material
- - Coil Voltage: 100V to 240V AC/DC at 60 Hz frequency
- - Wattage: 1.5 W
- - Coil Enclosure: Conduit Hub with electrical connections via DIN with 1/2 in conduit hub
- - Coil Insulation Class: H
- - Response Time: 1 second
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.50
- Package Height: 6.10
- Package Weight: 11.45
