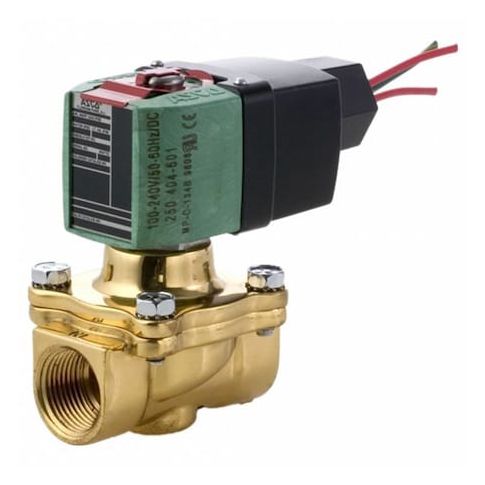

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 24V to 120V AC/DC, Brass MPN:8210P008LF 24-120

• The ASCO 8210P008LF 24-120 is a pilot-operated, normally closed solenoid valve designed for automated control of liquid and gas flow. Constructed with a brass body and NBR seals, this high flow 2-way valve operates within an ambient temperature range of 14°F to 140°F and fluid temperatures up to 180°F. Response Time: 1 second. It includes a coil with insulation class F enclosed in a watertight housing. Environmental rating: Indoor and outdoor use

• suitable for corrosive and hazardous environments per product specifications. It features electrical connections via a 1/2 inch conduit hub.

  Key Features:

  • - Valve Type: High Flow, 2-Way, Pilot Operated
  • - Body Material: Brass
  • Seal Material: NBR
  • - Voltage: 24V to 120V AC/DC
  • Wattage: 1.5 W
  • - Operating Pressure Differential: 5 to 350 psi for Air/Inert Gas, 5 to 100 psi for Light Oil, 5 to 150 psi for Water
  • - Nominal Pipe Size: 1-1/4 in
  • Orifice Diameter: 1-1/8 in
  • - Ambient Temperature Range: 14°F minimum to 140°F maximum
  • - Fluid Temperature Maximum: 180°F
  • - Coil: Included, Class F Insulation, Watertight Enclosure
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Mounting Orientation: Vertical
  • - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
  • - Thread Type: NPT inlet and outlet
  • - Valve Starting Configuration: Normally Closed
  • Valve Positions: 2-Position
  • - Response Time: 1 sec
  • - Standards: UL Listed
