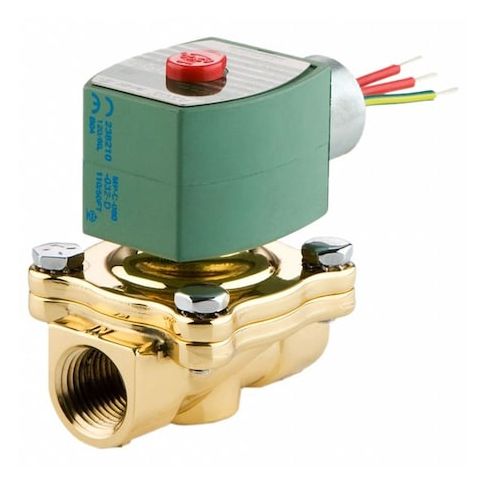

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 24V DC, High Flow, Brass MPN:8210G008LF 24/DC
The ASCO 8210G008LF 24/DC solenoid valve is a reliable and efficient solution for controlling the passage of air, inert gases, light oil, and water in various applications. Suitable for use in industrial settings, this pilot-operated, normally closed valve features a high flow rate and is designed for vertical mounting orientation. Its compact design and watertight coil enclosure make it ideal for use in harsh environments. With a response time of just 1 second, this valve is perfect for applications requiring rapid control, such as in pneumatic systems, oil and gas processing, and water treatment facilities.
Top product features:
- Pilot-operated, normally closed solenoid valve controls the passage of air, inert gases, light oil, and water.
- High flow rate design allows for efficient fluid flow.
- Normally closed design ensures that fluid flow is shut off when the solenoid is de-energized.
Top product applications:
- Industrial Process Control Systems
- Automotive Fluid Power Systems
- Medical Equipment and Laboratory Fume Hoods
The ASCO 8210G008LF 24/DC is a pilot-operated, normally closed solenoid valve featuring a flow path sized for 1-1/4 inch nominal pipe size. It controls the passage of air, inert gases, light oil, and water by using an energized coil to operate a plunger or poppet that opens or closes the flow path. Suitable for use with air, inert gas, light oil, and water within the specified differential pressure and temperature limits (ambient 14–140°F
- fluid max 180°F). It is designed for vertical mounting orientation and includes the coil and sealing components required for operation.
Key Features:
- - Body Material: Brass
- - Valve Type: High Flow
- - Valve Positions: 2-Position
- - Operating Voltage: 24V DC
- - Wattage: 6.1 W
- - Coil Enclosure: Watertight
- - Electrical Connections: 1/2 in Conduit Hub
- - Ambient Temperature Range: 14 to 140 Degrees F
- - Fluid Temperature Maximum: 180°F
- - Operating Pressure Differential Maximum: 350 psi (Air/Inert Gas), 100 psi (Light Oil), 150 psi (Water)
- - Operating Pressure Differential Minimum: 5 psi (Air/Inert Gas, Light Oil, Water)
- - Orifice Diameter: 1-1/8 in
- - Inlet and Outlet Connection Type: NPTF with NPT thread type
- - Environmental rating: rated for indoor and outdoor use
- - Response Time: 1 second
- - Seal Material: NBR
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 6.00
- Package Weight: 5.90
